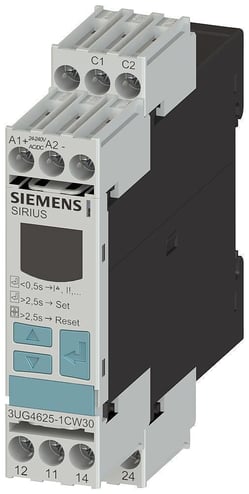

Siemens SIRIUS 3UG46251CW30 1-Phase Digitally Adjustable Current Monitoring Relay, 24 to 240 VACVDC, 0.03 to 40 A, 2CO Contact, 0.1 to 20 s Trip Delay


Description

Digital monitoring relay for residual current monitoring (with current transformer 3UL23) setting range 0.03 to 40 A separate for warning threshold and switch-off value supply voltage 24 to 240 VAC/VDC, 50 to 60 Hz ON delay and tripping delay 0.1 to 20 s shutdown hysteresis up to 50 % warning hysteresis 5 % fixed Width 22.5 mm, 2 CO contacts with or without fault buffer screw terminal.

Specifications

GTIN: 00887621268169

UNSPSC: 39121521

Country of Origin: Germany

Frequency Rating
50/60 Hz
Enclosure Type
IP20
BABA Compliant
No
Amperage Rating
0.03 to 40 A
Series
3UG4
Mounting Type
Threaded/Snap-On/DIN Rail
Voltage Rating
24 to 240 V AC/DC
Type
1-Phase Digitally Adjustable
Dimensions
22.5 mm W x 91 mm D x 102 mm H
Width
2.4 in
Trip Delay
0.1 to 20 s
Contact Configuration
2CO
Sold as
EACH
