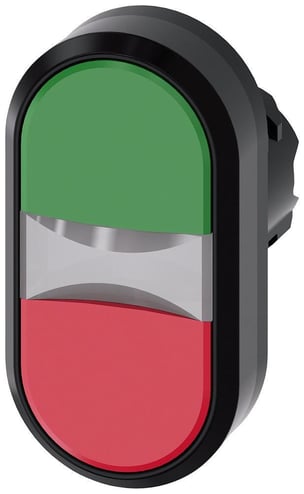

Siemens SIRIUS ACT 3SU10003AB420AA0 Non-Illuminated Round Twin Pushbutton Operator With Front Ring, 22 mm, BlackGreenRed
Siemens SIRIUS ACT 3SU10003AB420AA0 Non-Illuminated Round Twin Pushbutton Operator With Front Ring, 22 mm, BlackGreenRed
MPN 3SU10003AB420AA0
ASPN SIE3SU10003AB420AA0
UPC 804766062667
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
Specifications
GTIN: 00804766062667
UNSPSC: 39122216
Country of Origin: China
| Type | Non-Illuminated Round Twin |
|---|---|
| Color | Black/Green/Red |
| Size | 22 mm |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Operator Type | Flat Button |
| Series | 3SU10 |
| Material | Plastic |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Plastic |
| BABA Compliant | No |
| Sold as | EACH |
