Description

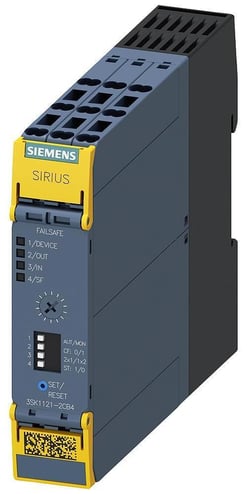

Siemens SIRIUS Safety Relay, 4-Circuit Basic Standard Advanced, Series: 3SK, 0.8 to 1.2 VDC, 24 VDC Coil, 2NO, Spring Mount, Push-In/Spring Loaded Terminal, IP20, -25 to 60 deg C, 100 mm H x 22.5 mm W x 121.6 mm D
The 3SK112 Advanced basic units form an innovative system landscape that allows even complex safety functions with large numbers of sensors and outputs to be built up using the device connectors. It is possible to increase both the number of inputs for sensors and the number of safe outputs of the basic unit without the need for wiring outlay between the devices.
Features
- Universal application possibilities thanks to multifunctionality
- Time delayed outputs
- Expansion of inputs and outputs
Specifications
GTIN: 00887621548933
UNSPSC: 39121521
Country of Origin: Germany
| Terminal Type | Push-In/Spring Loaded |
|---|---|
| Enclosure Type | IP20 |
| Coil Voltage | 0.8 to 1.2 V DC, 24 V DC |
| Series | 3SK |
| Contact Form | 2NO 2 Form A |
| Temperature Rating | -25 to 60 deg C |
| BABA Compliant | No |
| Mounting Type | Spring |
| Dimensions | 100 mm H x 22.5 mm W x 121.6 mm D |
| Type | 4-Circuit Basic Standard Advanced |
| Sold as | EACH |
