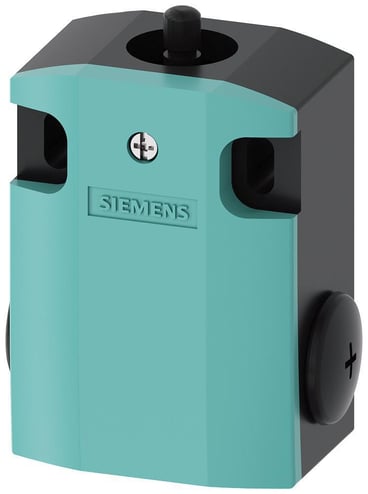

Siemens 3SE51220KA00 Basic Switch Body, 1NO-2NC Contact, For Use With 3SE51 PositionLimit Switch, IP66IP67 Enclosure
Siemens 3SE51220KA00 Basic Switch Body, 1NO-2NC Contact, For Use With 3SE51 PositionLimit Switch, IP66IP67 Enclosure
MPN 3SE51220KA00
ASPN SIE3SE51220KA00
UPC 754554954875
Description
Features
- (3) M20 x 1.5 cable entry
- 400 VAC insulation voltage
- 6 A thermal current
- 15000000 switching cycles mechanical service life
- 0.35 mm/5 g vibration resistance
- 30 g/11 ms shock-resistance
- 20 N minimum actuating force in activation direction
- Block, wide housing
- Cathodic immersion coating of the enclosure
- -40 to 90 deg C storage
- 1NO-2NC quick-action contacts
- Without actuator head
- Screw fixing mounting
Specifications
GTIN: 00754554954875
UNSPSC: 39121521
Country of Origin: Germany
| Suitable For Use With | 3SE51 Position/Limit Switch |
|---|---|
| Enclosure Type | IP66/67 |
| Dimensions | 66 mm L x 37.3 mm W x 85.7 mm D |
| Connection Type | (3) M20x1.5 |
| Material | Metal |
| Contact Configuration | 1NO-2NC |
| Temperature Rating | -25 to 85 deg C |
| BABA Compliant | No |
| Sold as | EACH |
