Description

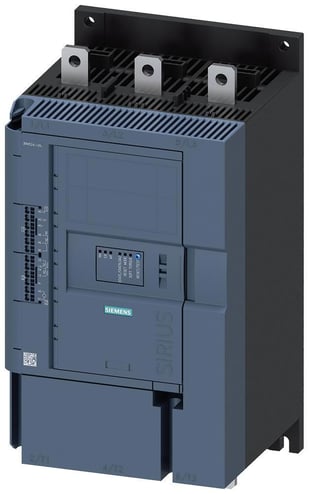

Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 600 VAC, 200/220/250 A, 50/60 Hz Frequency, 75 kW, 132 kW, 160 kW Motor, 24 VAC/VDC Coil, Automatic/Manual/Remote Reset, 3 ph, Busbar/Spring Loaded Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 393 mm H x 210 mm W x 203 mm D Dimensions
Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 75 kW at 230 VAC, 132 kW at 400 VAC, 160 kW at 500 VAC 3-phase motor power
- Busbar connection for main current circuit, spring loaded terminals for control circuit
- 250 A at 40 deg C, 220 A at 50 deg C and 200 A at 60 deg C amperage rating
Specifications
GTIN: 00804766689444
UNSPSC: 39121521
Country of Origin: Czechia
| Type | General Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Auxiliary Contact Rating | R300/B300 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 200 to 600 V AC |
| Weight | 0.1 lbs |
| Enclosure Type | IP00 |
| Dimensions | 393 mm H x 210 mm W x 203 mm D |
| Starting Modes | Ramp-Up/Ramp-Down |
| Motor Power | 75 kW, 132 kW, 160 kW |
| Coil Voltage | 24 V AC/DC |
| Series | 3RW52 |
| Connection Type | Busbar/Spring Loaded Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 200/220/250 A |
| BABA Compliant | No |
| Sold as | EACH |
