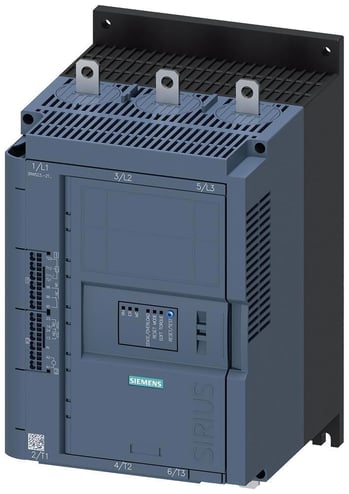

Siemens SIRIUS 3RW52352TC15 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC Coil, IP00 Enclosure
Siemens SIRIUS 3RW52352TC15 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC Coil, IP00 Enclosure
MPN 3RW52352TC15
ASPN SIE3RW52352TC15
UPC 804766689055
Description
Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 37 kW at 230 VAC, 75 kW at 400 VAC, 90 kW at 500 VAC 3-phase motor power
- Busbar connection for main current circuit, spring loaded terminals for control circuit
- 118 A at 40 deg C, 128 A at 50 deg C and 143 A at 60 deg C amperage rating
Specifications
GTIN: 00804766689055
UNSPSC: 39121521
Country of Origin: Czechia
| Type | General Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Auxiliary Contact Rating | R300/B300 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 200 to 600 V AC |
| Enclosure Type | IP00 |
| Dimensions | 306 mm H x 185 mm W x 203 mm D |
| Starting Modes | Ramp-Up/Ramp-Down |
| Motor Power | 37 kW, 75 kW, 90 kW |
| Coil Voltage | 110 to 250 V AC |
| Series | 3RW52 |
| Connection Type | Busbar/Spring Loaded Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 118/128/143 A |
| BABA Compliant | No |
| Sold as | EACH |
