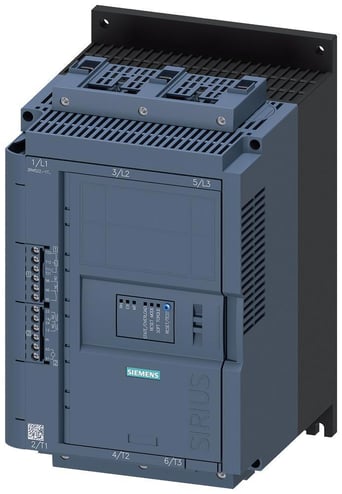

Siemens SIRIUS 3RW52251TC14 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC Coil, IP00 Enclosure
Siemens SIRIUS 3RW52251TC14 General Performance Soft Starter With Thermistor Motor Protection, 110 to 250 VAC Coil, IP00 Enclosure
MPN 3RW52251TC14
ASPN SIE3RW52251TC14
UPC 804766688621
Description
Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 30 kW at 230 VAC, 55 kW at 400 VAC 3-phase motor power
- Box terminal for main current circuit, screw type terminals for control circuit
- 63 A at 40 deg C, 55.5 A at 50 deg C and 50.5 A at 60 deg C amperage rating
Specifications
GTIN: 00804766688621
UNSPSC: 39121521
Country of Origin: Czechia
| Type | General Performance |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Auxiliary Contact Rating | R300/B300 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 200 to 480 V AC |
| Enclosure Type | IP00 |
| Dimensions | 306 mm H x 185 mm W x 203 mm D |
| Starting Modes | Ramp-Up/Ramp-Down |
| Motor Power | 30 kW, 55 kW |
| Coil Voltage | 110 to 250 V AC |
| Series | 3RW52 |
| Connection Type | Box/Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 50.5/55.5/63 A |
| BABA Compliant | No |
| Sold as | EACH |
