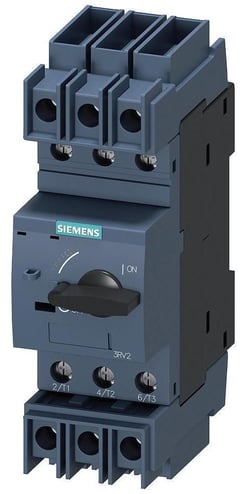

Siemens SIRIUS 3RV27111DD10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 10 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens SIRIUS Motor Protection Circuit Breaker, Type 3RV2, 690 VAC, 3.2 A, 2.2 kW Power, 50/60 Hz Frequency, 10 kA Interrupt, S00 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Selector Switch Actuator, Screw Connection, 14 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm L x 45 mm W x 144 mm H Dimensions

The new SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting 3-phase motors of up to 18.5 kW at 400 VAC and for other loads with rated currents of up to 40 A.

Features

  • Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
  • Standard switch capacity
  • (2) 14 AWG wire
  • -50 to 80 deg C environmental conditions
  • Class 10 trip
  • 100000 cycles switching
  • Can optionally be fed from the top or from below

Specifications

GTIN: 00662643922783

UNSPSC: 39121601

Country of Origin: Germany

Type
Type 3RV2
Trip Type
Thermal Magnetic
Interrupt Rating
10 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
690 V AC
Weight
0.1 lbs
Enclosure Type
IP20
Dimensions
97 mm L x 45 mm W x 144 mm H
Mounting Type
DIN Rail
Connection Type
Screw
Phase
3
Amperage Rating
3.2 A
Volume
0
Temperature Rating
-20 to 60 deg C
Frame
S00
BABA Compliant
No
Power Rating
2.2 kW
Actuator Type
Selector Switch
Wire Size
14 AWG
Sold as
EACH
