Description

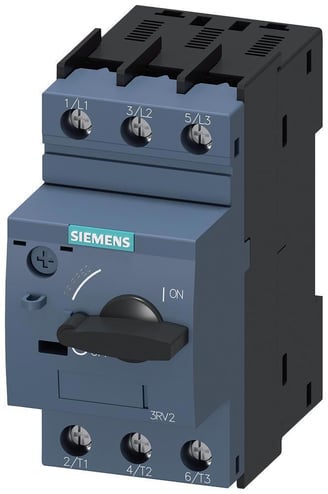

Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 22 A, 18.5 kW Power, 50 to 60 Hz Frequency, 2 kA Interrupt, S0 Frame, Magnetic Trip, 3 Pole, 3 ph, Screw Connection, 16 to 12 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions
The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.
Features
- Class 10 trip
Specifications
GTIN: 00040892960877
UNSPSC: 39121601
Country of Origin: Germany
| Trip Type | Magnetic |
|---|---|
| Wire Size | 16 to 12 AWG |
| Interrupt Rating | 2 kA |
| Number of Poles | 3 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 690 V AC |
| Enclosure Type | IP20 |
| Dimensions | 97 mm H x 45 mm W x 96 mm D |
| Mounting Type | DIN Rail |
| Series | 3RV2 |
| Connection Type | Screw |
| Phase | 3 |
| Amperage Rating | 22 A |
| Volume | 0.7 cubic inches |
| Power Rating | 18.5 kW |
| Temperature Rating | -20 to 60 deg C |
| Frame | S0 |
| BABA Compliant | No |
| Sold as | EACH |
