Description

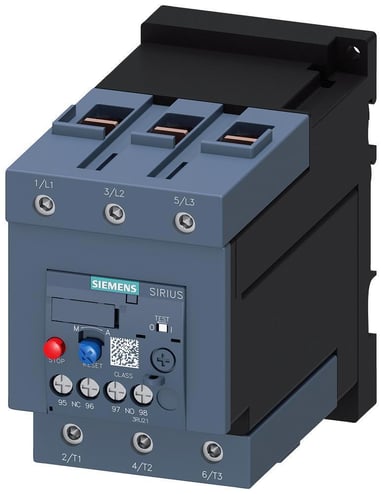

Siemens SIRIUS Thermal Overload Relay, Class 10, 70 to 90 A, 45 kW Power, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC Contact, 3 Pole, Stand Alone Mounting, Screw Terminal, IP00/IP20 Enclosure, -40 to 70 deg C, 120 mm H x 70 mm W x 140 mm D Dimensions
Features
- Manual/automatic reset
Specifications
GTIN: 00804766406423
UNSPSC: 39122330
Country of Origin: Germany
| Terminal Type | Screw |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Weight | 0.3 lbs |
| Width | 1 in |
| Enclosure Type | IP00/IP20 |
| Mounting Type | Stand Alone |
| Contact Form | 1NO-1NC 1 Form A/1 Form B |
| Temperature Rating | -40 to 70 deg C |
| Contact Rating | 3 A at 24/110/120/125 V AC, 2 A at 230 V AC, 1 A at 400 V AC, 2 A at 24 V DC, 0.3 A at 60 V DC, 0.22 A at 110/125 V DC, 0.11 A at 220 V DC |
| BABA Compliant | No |
| Power Rating | 45 kW |
| Amperage Rating | 70 to 90 A |
| Dimensions | 120 mm H x 70 mm W x 140 mm D |
| Type | Class 10 |
| Sold as | EACH |
