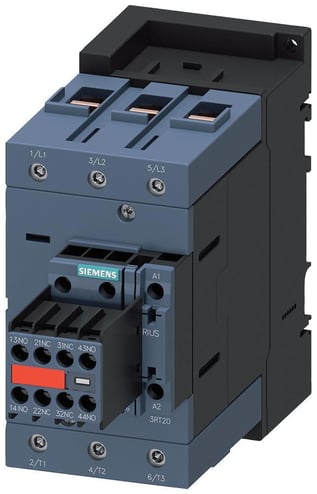

Siemens SIRIUS 3RT20461NB343MA0 3-Phase Standard Power Contactor With Integrated Varistor, 20 to 33 VACVDC Coil, 95 A, 3NO Contact, 3 Poles
Siemens SIRIUS 3RT20461NB343MA0 3-Phase Standard Power Contactor With Integrated Varistor, 20 to 33 VACVDC Coil, 95 A, 3NO Contact, 3 Poles
MPN 3RT20461NB343MA0
ASPN SIE3RT20461NB343MA0
UPC 804766492952
Description
Specifications
GTIN: 00804766492952
UNSPSC: 39121529
Country of Origin: Germany
| Type | 3-Phase Standard |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Terminal Type | Screw |
| Maximum Load Current | 95 A |
| Number of Poles | 3 |
| Wattage | 151 VA Pickup, 3.5 VA Holding, 76 W DC Closing, 2.7 W DC Holding |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 45 kW at 400 V 3-Phase |
| Size | S3 |
| Width | 5.1 in |
| Enclosure Type | IP00/IP20 |
| Dimensions | 140 mm H x 70 mm W x 195 mm D |
| Coil Voltage | 20 to 33 V AC/DC |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Series | 3RT20 |
| Contact Configuration | 3NO |
| Contact Rating | A600/P600 |
| Operating Cycles | 10000000 |
| Number of Auxiliary Contacts | 2NO-2NC |
| BABA Compliant | No |
| Sold as | EACH |
