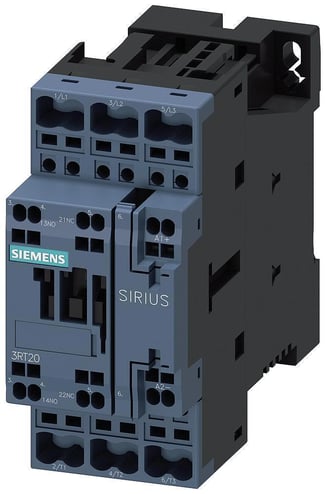

Siemens 3RT20252XG400LA2 Traction Contactor With Electronic Drive and Integrated Varistor, 125 VDC V Coil, 17 A, 1NC-1NO Contact, 3 Poles


Description

Siemens Traction Contactor, Series: 3RT2, 125 VDC Coil, 17 A Maximum Load Current, 13.2 W Closing, 1.56 W Holding Coil, 3 Pole, 7.5 kW Wattage, 1NC-1NO Contact Configuration, S0 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 107 mm D x 102 mm H Dimensions

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2NO+2NC (terminal designations acc. to EN 50 012) are available as of size S0, the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.

Specifications

GTIN: 00040892633191

UNSPSC: 39121529

Country of Origin: Germany

Terminal Type
Spring
Maximum Load Current
17 A
Number of Poles
3
Wattage
7.5 kW
Coil Power Rating
13.2 W Closing, 1.56 W Holding
Size
S0
Weight
28 lbs
Width
9 in
Enclosure Type
IP20
Dimensions
45 mm W x 107 mm D x 102 mm H
Coil Voltage
125 V DC
Mounting Type
Surface/Threaded/DIN Rail/Snap-On
Series
3RT2
Contact Configuration
1NO-1NC
Operating Cycles
10000000 Cycles
BABA Compliant
No
Sold as
EACH
