Description

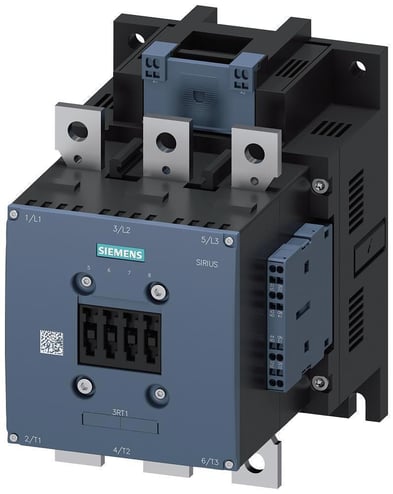

Siemens SIRIUS Standard Contactor, 3-Phase, 110 to 127 VAC/VDC Coil, 225 A Maximum Load Current, 200 hp Coil, 3 Pole, 40 to 60 Hz Frequency, 110 kW Wattage, Auxiliary Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.9, S10 Size, Spring Loaded Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Threaded Mounting, 210 mm H x 145 mm W x 202 mm D Dimensions
The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.
Features
- 60 hp at 200/208 VAC, 75 hp at 220/230 VAC, 150 hp at 460/480 VAC, 200 hp at 575/600 VAC
Specifications
GTIN: 00754554959078
UNSPSC: 39121529
Country of Origin: Germany
| Type | 3-Phase |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Terminal Type | Spring Loaded |
| Number of Poles | 3 |
| Wattage | 110 kW |
| Size | S10 |
| Enclosure Type | IP00/IP20 |
| Dimensions | 210 mm H x 145 mm W x 202 mm D |
| Coil Voltage | 110 to 127 V AC/DC |
| Mounting Type | Threaded |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Power Factor | 0.9 |
| Operating Cycles | 10000000 Cycles |
| Contact Type | Auxiliary |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Coil Power Rating | 200 hp |
| Frequency Rating | 40 to 60 Hz |
| Maximum Load Current | 225 A |
| Sold as | EACH |
