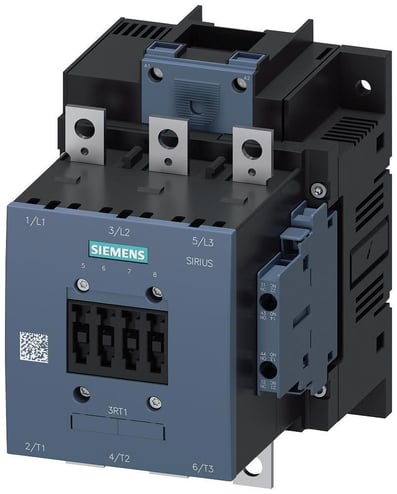

Siemens 3RT1056-6AM36-0UA0 Standard Power Contactor, 200 to 220 VAC/VDC V Coil, 185 A, 2NO-2NC Contact, 3 Poles


Description

Siemens Power Contactor, Standard, Series: 3RT1, 200 to 220 VAC/VDC Coil, 185 A Maximum Load Current, 300 VA Pick-Up, 5.8 VA Holding, 360 W Closing and 5.2 W Holding Coil, 3 Pole, 50/60 Hz Frequency, 90 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.9 Closing/0.8 Holding, Bus Bar Connection, 6 Size, Screw Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded Mounting, 140 mm W x 170 mm D x 172 mm H Dimensions

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2NO+2NC (terminal designations acc. to EN 50 012) are available as of size S0, the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.

Features

  • 10000000 cycles mechanical/5000000 cycles electrical
  • Conventional drive

Specifications

GTIN: 00754554929231

UNSPSC: 39121529

Country of Origin: Germany

Type
Standard
Operating Temperature
-25 to 60 deg C
Terminal Type
Screw
Maximum Load Current
185 A
Number of Poles
3
Wattage
90 kW
Frequency Rating
50/60 Hz
Coil Power Rating
300 VA Pick-Up, 5.8 VA Holding, 360 W Closing and 5.2 W Holding
Size
6
Weight
1631.4 lbs
Width
1 in
Enclosure Type
IP00/IP20
Dimensions
140 mm W x 170 mm D x 172 mm H
Coil Voltage
200 to 220 V AC/DC
Mounting Type
Surface/Threaded
Series
3RT1
Connection Type
Bus Bar
Contact Configuration
2NO-2NC
Power Factor
0.9 Closing/0.8 Holding
Operating Cycles
10000000 Cycles
BABA Compliant
No
Sold as
EACH
