Description

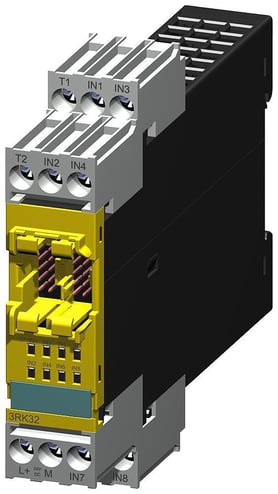

Siemens Expansion Module, 24 VDC, 4 Inputs, 4 Outputs, Threaded Terminal, -20 to 60 deg C, 102 mm H x 22.5 mm W x 124 mm D Dimensions
Features
- IP20 degree of protection
- 15 g/11 ms shock resistance
- 3 deg of pollution
- Vertical standard rail mounting
- -40 to 85 deg C storage
- 10 to 95% relative humidity
- 4 kV contact discharge/8 kV air discharge
- 4000 VAC surge voltage resistance
- 300 VAC insulation voltage rated value
- 0.5 to 4 sq-mm single or multi-stranded/0.5 to 2.5 sq-mm finely stranded connectable conductor cross-section
- Without connection cable
Specifications
GTIN: 00754554961965
UNSPSC: 39121521
Country of Origin: Germany
| Terminal Type | Threaded |
|---|---|
| Voltage Rating | 24 V DC |
| Weight | 1.7 lbs |
| Number of Inputs | 4 |
| Dimensions | 102 mm H x 22.5 mm W x 124 mm D |
| Number of Outputs | 4 |
| Temperature Rating | -20 to 60 deg C |
| BABA Compliant | No |
| Sold as | EACH |
