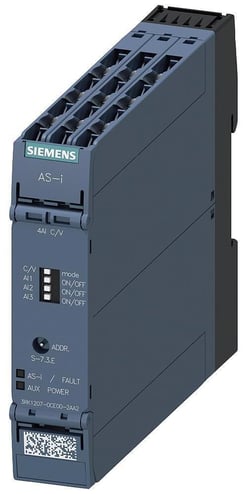

Siemens 3RK12070CE002AA2 SlimLine Compact Analog IO Module, 4 Inputs, 1 to 5 V, +-10 V, 4 to 20 mA, +-20 mA Signal Range, 16 bit Resolution
Siemens 3RK12070CE002AA2 SlimLine Compact Analog IO Module, 4 Inputs, 1 to 5 V, +-10 V, 4 to 20 mA, +-20 mA Signal Range, 16 bit Resolution
MPN 3RK12070CE002AA2
ASPN SIE3RK12070CE002AA2
UPC 804766359873
Description
Features
- 1 to 5 V, +/-10 V voltage, 4 to 20 mA, +/-20 mA current signal range
Specifications
GTIN: 00804766359873
UNSPSC: 32151705
Country of Origin: Germany
| Type | Compact |
|---|---|
| Terminal Type | Screw |
| Voltage Rating | 18 to 31.6 V |
| Number of Inputs | 4 |
| Resolution | 16 bit |
| Series | SlimLine |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Dimensions | 100 mm H x 22.5 mm W x 120 mm D |
| Signal Range | 1 to 5 V, +/-10 V, 4 to 20 mA, +/-20 mA |
| Sold as | EACH |
