Description

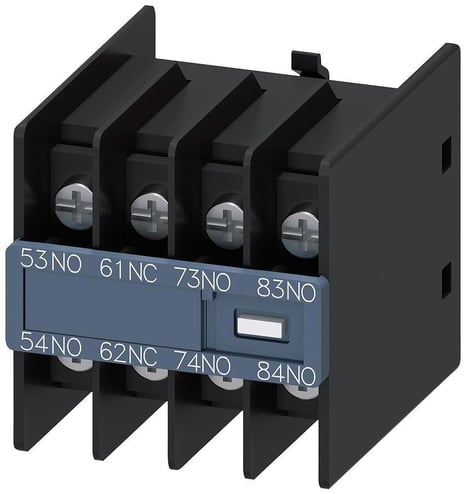

Siemens Auxiliary Switch Block, 690 V, 10 A, 3NO-1NC Contacts, 6 kV Contact Resistance, S00, Snap-On Mount, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C, For Use With: 3RH2140 and 3RH2440 Contactor Relays, 36 mm W x 43.7 mm D x 37.5 mm H
Features
- IP00 protection on front
- Front side switch
- Ring cable lug connection
Specifications
GTIN: 00662643910575
UNSPSC: 39121522
Country of Origin: Czechia
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Suitable For Use With | 3RH2140 and 3RH2440 Contactor Relays |
| Voltage Rating | 690 V |
| Size | S00 |
| Weight | 1.3 lbs |
| Width | 17.3 in |
| Contact Resistance | 6 kV |
| Dimensions | 36 mm W x 43.7 mm D x 37.5 mm H |
| Mounting Type | Snap-On |
| Number of Contacts | 3NO-1NC |
| Amperage Rating | 10 A |
| Environmental Conditions | -55 to 80 deg C |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Sold as | EACH |
