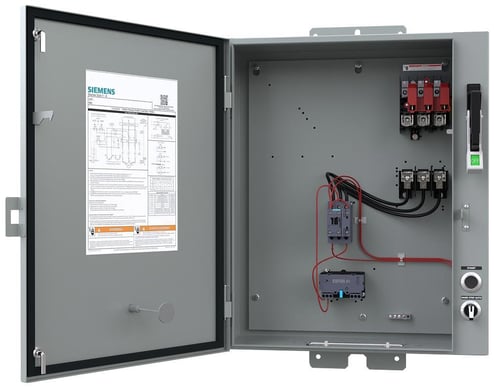

Siemens 3RE48010GH764CA0 Pump Control Panel, 480 V AC V Coil, Fusible Disconnect/Non-Reversing Action, NEMA 3R Enclosure


Description

Siemens, 3RE48010GH764CA0, Panel, Pump Control, 600 V, 27 A, 60 Hz Frequency, 3 to 12 A Supply, 5 hp Motor, 480 V AC Coil, Setting: 3 to 12 A, 8 to 40 ms On/4 to 16 ms Off Timing, Automatic/Manual/Remote Reset, 3 pH, Box Lug/Screw Terminal Connection, Size 1, Fusible Disconnect/Non-Reversing Action, Solid-State Overload Relay, 10 A at 600 VAC/5 A at 600 VDC Auxiliary, Start Pushbutton/Hand-Off-Auto Selector Switch Control, NEMA 3R Enclosure, Copper, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 29 in H x 20 in W x 8 in D Dimensions

Features

  • Enclosure NEMA type 3R
  • ESP200 overload relay

Specifications

GTIN: 00195125249134

UNSPSC: 39121521

Country of Origin: United States of America (the)

Type
Pump Control
Operating Temperature
-4 to 104 deg F
Control Type
Start Pushbutton/Hand-Off-Auto Selector Switch
Auxiliary Contact Rating
10 A at 600 VAC/5 A at 600 VDC
Timing
8 to 40 ms On/4 to 16 ms Off
Frequency Rating
60 Hz
Voltage Rating
600 V
Size
Size 1
Power Supply
3 to 12 A
Enclosure Type
NEMA 3R
Dimensions
29 in H x 20 in W x 8 in D
Setting
3 to 12 A
Motor Power
5 hp
Coil Voltage
480 V AC
Connection Type
Box Lug/Screw Terminal
Phase
3
Action
Fusible Disconnect/Non-Reversing
Reset Type
Automatic/Manual/Remote
Material
Copper
Amperage Rating
27 A
Operating Cycles
10000000 Cycles
Overload Relay
Solid-State
Sold as
EACH
