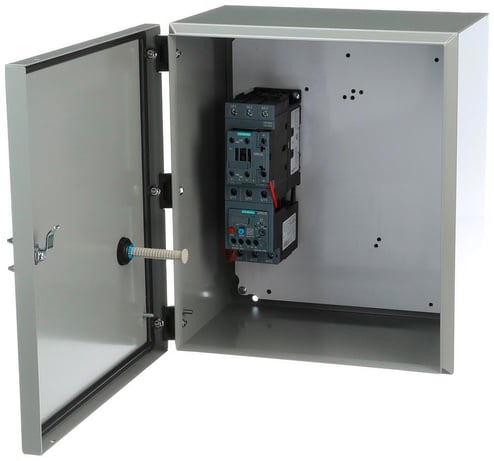

Siemens 3RE41235CA154UY0 Water/Dust-Tight Full Voltage Non-Combination Motor Starter, 24 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3/3R/4/12 Enclosure


Description

Siemens Motor Starter, Water/Dust-Tight Full Voltage Non-Combination, 600 VAC, 40 hp Motor, 24 VAC Coil, 3 Pole, Setting: 12 to 50 A, 10 to 80 ms On/10 to 18 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal/Box Lug Connection, Non-Reversing Action, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 3/3R/4/12 Enclosure, 10000000 cycles Operating Cycles, -4 to 104 deg F Operating, 12 in W x 8 in D x 14 in H Dimensions

3RE4 Enclosed IEC motor controllers are well suited for both industrial and commercial applications. They are durable and dependable, particularly when it comes to motor protection. Protecting the performance of motors is a critical priority and the 3RE4 enclosed starters are offered with either thermal or solid-state overload relays to maximize your motor protection.

Specifications

GTIN: 00804766736001

UNSPSC: 39121521

Country of Origin: United States of America (the)

Type
Water/Dust-Tight Full Voltage Non-Combination
Operating Temperature
-4 to 104 deg F
Number of Poles
3
Auxiliary Contact Rating
10 A at 600 VAC, 5 A at 600 VDC
Timing
10 to 80 ms On/10 to 18 ms Off
Voltage Rating
600 V AC
Width
9 in
Enclosure Type
NEMA 3/3R/4/12
Dimensions
12 in W x 8 in D x 14 in H
Setting
12 to 50 A
Motor Power
40 hp
Coil Voltage
24 V AC
Connection Type
Screw Terminal/Box Lug
Phase
3
Action
Non-Reversing
Reset Type
Automatic/Manual/Remote
Volume
19058.1 cubic inches
Operating Cycles
10000000 cycles
Overload Relay
Solid-State
BABA Compliant
No
Sold as
EACH
