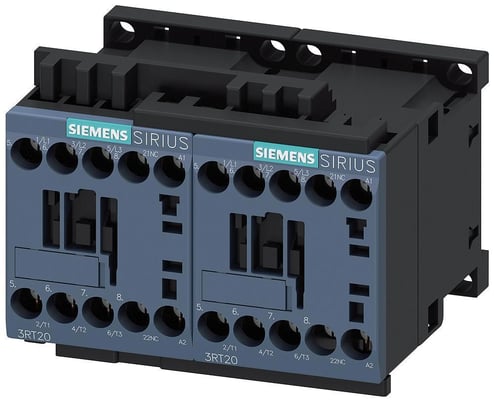

Siemens SIRIUS 3RA23188XB301AK6 3-Phase Reversing Contactor Assembly With Mechanical and Electrical Interlock, 110120 VAC Coil, 16 A, 3NO Contact, 3 Poles


Description

Siemens SIRIUS Contactor Assembly, 3-Phase Reversing, 110/120 VAC Coil, 16 A Maximum Load Current, 10 hp Coil Power Rating, 3 Poles, 50/60 Hz, 7.5 kW, Auxiliary Contact, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.8, S00, Screw Terminal, Open, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Snap-On Mount, 68 mm H x 90 mm W x 73 mm D

The fully wired reversing contactor assemblies are suitable for use in any climate. They are safe from touch to EN 50274. The contactor assemblies each consist of two contactors with identical ratings. The contactors are mechanically and electrically interlocked (NC contact interlock). For motor protection, either 3RU2 or 3RB3 overload relays for direct mounting or individual mounting or thermistor motor protection tripping units must be ordered separately.

Features

  • 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
  • 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC, 10 hp at 575/600 VAC

Specifications

GTIN: 00662643898750

UNSPSC: 39121529

Country of Origin: Germany

Operating Temperature
-25 to 60 deg C
Terminal Type
Screw
Maximum Load Current
16 A
Number of Poles
3
Frequency Rating
50/60 Hz
Coil Power Rating
10 hp
Size
S00
Width
7.2 in
Enclosure Type
Open
Dimensions
68 mm H x 90 mm W x 73 mm D
Coil Voltage
110/120 V AC
Mounting Type
Snap-On
Contact Configuration
3NO
Contact Rating
A600/Q600
Power Factor
0.8
Operating Cycles
10000000 Cycles
Contact Type
Auxiliary
BABA Compliant
No
Number of Auxiliary Contacts
2
Wattage
7.5 kW
Type
3-Phase Reversing
Sold as
EACH
