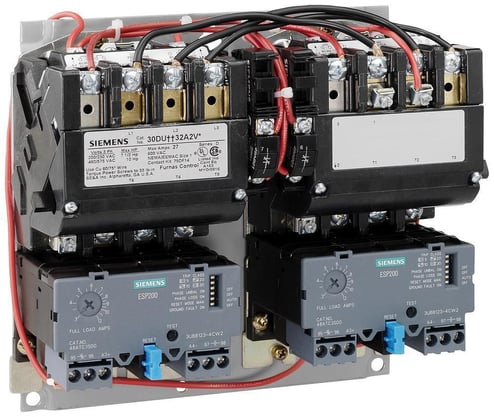

Siemens 30JUHH32A1VF Heavy Duty 2-Speed 2-Winding Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Open Enclosure
Siemens 30JUHH32A1VF Heavy Duty 2-Speed 2-Winding Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Open Enclosure
MPN 30JUHH32A1VF
ASPN SIE30JUHH32A1VF
UPC 40892023237
Description
Features
- Constant or variable torque
- NEMA controller size 4
Specifications
GTIN: 00040892023237
UNSPSC: 39121521
Country of Origin: Mexico
| Type | Heavy Duty 2-Speed 2-Winding |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 22 W |
| Timing | 18 to 34 ms On/10 to 12 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 16.3 lbs |
| Width | 7.6 in |
| Full Load Current | 50 to 200 A Low Speed, High Speed |
| Enclosure Type | Open |
| Dimensions | 12.75 in W x 6.22 in D x 11.91 in H |
| Motor Power | 40 hp at 200/208 VAC, 50 hp at 220/230 VAC, 100 hp at 460/480/575/600 VAC |
| Coil Voltage | 110 V AC at 50 Hz, 120 V AC at 60 Hz |
| Connection Type | Box Lug |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 135 A |
| Operating Cycles | 5000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
