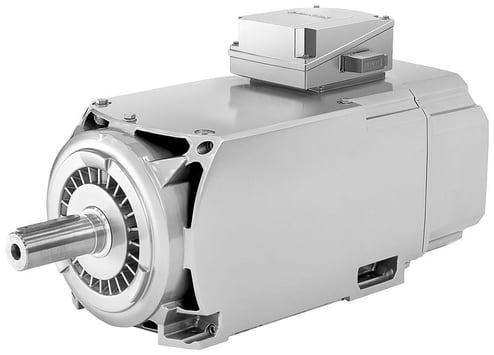

Siemens SIMOTICS M 1PH82861HF102BU2 Compact Forced Ventilated Induction Motor With High Power Density, IP55 Enclosure, 335 hp, 362 hp, 374 hp, 416 hp, 400480 VAC, 50.458.76773.6 Hz, 3 Phase, 1500175020002200 rpm Speed, IM B3IM V6 Mount


Description

Siemens SIMOTICS M Induction Motor, Compact Forced Ventilated, Series: 1PH8, Crane Motor Application, Asynchronous, Main Spindle Drive Motor, Squirrel Cage Rotor Special Features, 335 hp, 362 hp, 374 hp, 416 hp, 400/480 VAC, 395/460/490 A, 50.4/58.7/67/73.6 Hz Frequency, 3 ph, 1500/1750/2000/2200 rpm Speed, IP55 Enclosure, 95 mm Dia x 280 mm H Shaft, 1211/1481/1474/1592 N-m Torque, IM B3/IM V6 Mounting, 104 deg F, Insulation Class: Class H, 56.14 in L x 22.91 in W x 41.02 in H Dimensions

The simotics M-1PH8 Series is the latest motor generation for universal use with motion control applications. The wide power range is aimed at use as a central machine drive (as what is known as a "main motor") for various applications. The motors are available as an asynchronous variant as well as a compact synchronous variant with either forced ventilation or water cooling, based on a flexible building block principle. The flexible configuration such as storage or electrical connection technology allows you to adapt the motors to the requirements of almost any industrial application.

Features

  • With HTL 1024 S/R incremental encoder, without DRIVE-CLiQ interface
  • With feather key shaft extension, half key balancing
  • Standard bearing, R/A vibration severity grade according to Siemens/EN 60034-14, R shaft and flange accuracy grade
  • NDE terminal box, right cable entry, below signal connection by looking at de
  • Low space requirements thanks to high power density
  • Performance capability thanks to wide rotational speed setting ranges
  • High degree of structural flexibility due to the choice of asynchronous or synchronous design, forced ventilation or water cooling, mechanical designs
  • Minimized maintenance costs thanks to high bearing service lives
  • Precise motion control thanks to high rotational accuracy, even at the lowest speeds
  • Maximum thermal utilization over the complete speed range
  • Quiet operation as a result of low sound pressure level
  • Optimized for the SINAMICS S120 drive system
  • 335 hp, 1592 N-m, 490 A at 400 VAC smart/basic line module
  • 362 hp, 1474 N-m, 460 A at 400 VAC active line module
  • 416 hp, 1481 N-m, 460 A at 480 VAC smart/basic line module
  • 374 hp, 1211 N-m, 395 A at 480 VAC active line module
  • Without holding brake

Specifications

GTIN: 00804766723742

UNSPSC: 26101114

Country of Origin: Czechia

Type
Compact Forced Ventilated
Application Type
Crane Motor
Torque Rating
1211/1481/1474/1592 N-m
Frequency Rating
50.4/58.7/67/73.6 Hz
Voltage Rating
400/480 V AC
Width
13 in
Shaft Size
95 mm Dia x 280 mm H
Speed
1500/1750/2000/2200 rpm
Insulation Class
Class H
Enclosure Type
IP55
Dimensions
56.14 in L x 22.91 in W x 41.02 in H
Mounting Type
IM B3/IM V6
Series
1PH8
Phase
3
Special Features
Asynchronous, Main Spindle Drive Motor, Squirrel Cage Rotor
Amperage Rating
395/460/490 A
Temperature Rating
104 deg F
Horsepower
335 hp, 362 hp, 374 hp, 416 hp
BABA Compliant
No
Sold as
EACH
