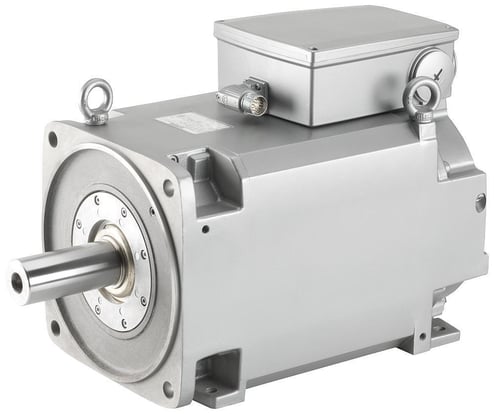

Siemens SIMOTICS M 1PH81332FG201GH1 Compact Water Cooling AC Motor With Extremely High Power Density, IP65 Enclosure, 41 hp, 46.8 hp, 52.4 hp, 400480 VAC, 66.776.788.3 Hz, 3 Phase, 2000230026502800 rpm Speed, IM B3IM V5IM V6IM B6IM B7IM B8 Moun


Description

Siemens SIMOTICS M AC Motor, Compact Water Cooling, Series: 1PH8, Crane Motor Application, Permanent Magnet Synchronous, Main Spindle Drive Motor Special Features, 41 hp, 46.8 hp, 52.4 hp, 400/480 VAC, 57 A, 66.7/76.7/88.3 Hz Frequency, 3 ph, 2000/2300/2650/2800 rpm Speed, IP65 Enclosure, 48 mm Dia x 132 mm H Shaft, 141/145/146 N-m Torque, IM B3/IM V5/IM V6/IM B6/IM B7/IM B8 Mounting, 86 deg F, Insulation Class: Class H, 19.78 in L x 10.24 in W x 13.68 in H Dimensions

The simotics M-1PH8 Series is the latest motor generation for universal use with motion control applications. The wide power range is aimed at use as a central machine drive (as what is known as a "main motor") for various applications. The motors are available as an asynchronous variant as well as a compact synchronous variant with either forced ventilation or water cooling, based on a flexible building block principle. The flexible configuration such as storage or electrical connection technology allows you to adapt the motors to the requirements of almost any industrial application.

Features

  • With 22-bit single turn + 12-bit multi-turn AM22DQ absolute encoder, DRIVE-CLiQ interface
  • With feather key shaft extension, full key balancing
  • Standard bearing, R/A vibration severity grade according to Siemens/EN 60034-14, R shaft and flange accuracy grade
  • Top power connector, DE cable entry, left signal connection by looking at de
  • Low space requirements thanks to high power density
  • Performance capability thanks to wide rotational speed setting ranges
  • High degree of structural flexibility due to the choice of asynchronous or synchronous design, forced ventilation or water cooling, mechanical designs
  • Minimized maintenance costs thanks to high bearing service lives
  • Precise motion control thanks to high rotational accuracy, even at the lowest speeds
  • Maximum thermal utilization over the complete speed range
  • Quiet operation as a result of low sound pressure level
  • Optimized for the SINAMICS S120 drive system
  • 41 hp, 146 N-m, 57 A at 400 VAC smart/basic line module
  • 46.8 hp, 145 N-m, 57 A at 400 VAC active line module
  • 52.4 hp, 141 N-m, 57 A at 480 VAC smart/basic line module
  • Without holding brake

Specifications

GTIN: 00804766368745

UNSPSC: 26101109

Country of Origin: Germany

Type
Compact Water Cooling
Application Type
Crane Motor
Torque Rating
141/145/146 N-m
Frequency Rating
66.7/76.7/88.3 Hz
Voltage Rating
400/480 V AC
Shaft Size
48 mm Dia x 132 mm H
Speed
2000/2300/2650/2800 rpm
Insulation Class
Class H
Enclosure Type
IP65
Dimensions
19.78 in L x 10.24 in W x 13.68 in H
Mounting Type
IM B3/IM V5/IM V6/IM B6/IM B7/IM B8
Series
1PH8
Phase
3
Special Features
Permanent Magnet Synchronous, Main Spindle Drive Motor
Amperage Rating
57 A
Temperature Rating
86 deg F
Horsepower
41 hp, 46.8 hp, 52.4 hp
BABA Compliant
No
Sold as
EACH
