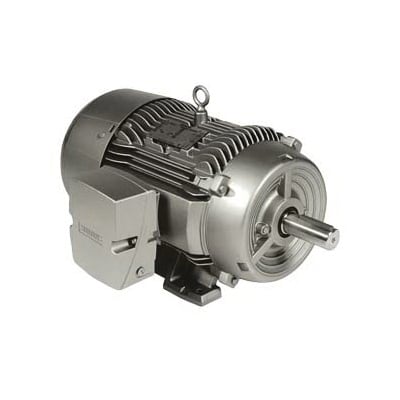

Siemens SIMOTICS 1LE22213AB216AA3 Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard AC Motor, IP54, TEFC Enclosure, 50 hp, 230/460 V AC, 60 Hz, 3 Phase, 326T Frame, 1800 rpm Speed, Footed Mount


Description

Siemens SIMOTICS AC Motor, Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard, Series: 1LE2, General Purpose Motor Application, NEMA Premium® Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 4:1 Constant Torque, 20:1 Variable Torque Special Features, 50 hp, 230/460 V AC, 58 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, 1 Speed, IP54, TEFC Enclosure, 326T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 148 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 19.11 in H x 32.07 in W Dimensions

GP100 general purpose TEFC motors are available in two configurations they exceed NEMA Premium® efficiency with our exclusive, leading-edge, die cast copper rotor design (143T-256T) or meet NEMA Premium® efficiency with our die cast aluminum rotor design (143T-449T). Either way, these motors significantly reduce operating costs and pay for themselves in a short time through energy savings. These industry workhorses are ideal for use in material handling, pump, fan, compressor and other industrial applications.

Features

  • Without winding protection
  • Cast iron construction for exceptional structural integrity, equipped with integrally cast feet
  • Condensation drain holes provided
  • Unique frame fin design maximizes cooling
  • Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance
  • Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improve efficiencies
  • A unique stator core design lowers flux density while increasing cooling capacity
  • Large conductor cross section reduces resistance and lowers stator losses
  • Proprietary inverter rated NEMA class F non-hygroscopic insulation system with class B temperature rise at 1.0SF, provides an extra margin of thermal life
  • Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical surges
  • Insulation system meets or exceeds NEMA MG1-2006, Part 31 making all motors suitable for operation with adjustable frequency drives
  • A bi-directional, non-sparking fan is locked and keyed to the shaft
  • Its design reduces windage losses, improves air flow, reduces noise and provides dependable cooling
  • Polycarbonate fan covers are provided on all frame sizes
  • Lubricated for life, oversized, complete with external V-ring slinger
  • Specially formulated, high temperature, polyurea based grease
  • Oversized cast construction that is larger than industry standards, diagonally split and rotatable in 90 deg increments for quick and easy connections
  • Non-wicking, clearly and permanently marked leads
  • Cast iron construction, polycarbonate fan, corrosion-resistant hardware, epoxy enamel paint resist rust and corrosion

Specifications

GTIN: 00662643929553

UNSPSC: 26101112

Country of Origin: Mexico

Type
Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard
Application Type
General Purpose Motor
Service Factor
1.15
Torque Rating
148 ft-lb
Frequency Rating
60 Hz
Rotation
CW/CCW
Voltage Rating
230/460 V AC
Speed
1800 rpm
Insulation Class
Class F
Enclosure Type
IP54, TEFC
Number of Speeds
1
Dimensions
19.11 in H x 32.07 in W
Mounting Type
Footed
Series
1LE2
Bearing Type
Ball
Phase
3
Special Features
NEMA Premium® Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 4:1 Constant Torque, 20:1 Variable Torque
Material
Cast Iron
Amperage Rating
58 A
Temperature Rating
-20 to 40 deg C
Horsepower
50 hp
Frame
326T
Sold as
EACH
