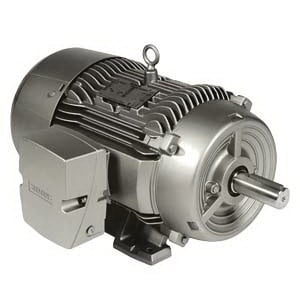

Siemens 1LE22212BA113EA3 2-Pole Continuous-Duty Low Voltage Standard Type GP100 AC Motor, IP54/55, TEFC Enclosure, 15 hp, 575 V AC, 60 Hz, 3 ph, 254TC Frame, 3600 rpm Speed, C-Face/Footed/Floor Mount
Siemens 1LE22212BA113EA3 2-Pole Continuous-Duty Low Voltage Standard Type GP100 AC Motor, IP54/55, TEFC Enclosure, 15 hp, 575 V AC, 60 Hz, 3 ph, 254TC Frame, 3600 rpm Speed, C-Face/Footed/Floor Mount
MPN 1LE22212BA113EA3
ASPN SIE1LE22212BA113EA3
UPC 040892592931
Description
Features
- Cast iron construction for exceptional structural integrity, equipped with integrally cast feet
- Condensation drain holes are provided
- Unique frame fin design maximizes cooling
- Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance
- Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improved efficiencies
- A unique stator core design lowers flux density while increasing cooling capacity
- Large conductor cross section reduces resistance and lowers stator losses
- Proprietary inverter rated NEMA class F, non-hygroscopic insulation system with class B temperature rise at 1.0 SF provides an extra margin of thermal life
- Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical surges
- Insulation system meets or exceeds NEMA mg1 2006, part 31, making all motors suitable for operation with adjustable frequency drives
- A bi-directional, non-sparking fan is locked and keyed to the shaft
- Its design reduces windage losses, improves airflow, reduces noise and provides dependable cooling
- Polycarbonate fan covers are provided on all frame sizes
- Lubricated for life (FS 140 to 400), provisions for lubrication (FS 440), oversized, complete with external bearing protection
- Specially formulated, high temperature, polyurea based grease
- Oversized cast iron construction that is larger than industry standards, diagonally split and rotatable in 90 deg increments for quick and easy connections
- Non-wicking, clearly and permanently marked leads
- Cast iron construction, polycarbonate fan, corrosion resistant hardware, epoxy enamel paint resist rust and corrosion
- Without winding protection
- RAL7030 standard stone gray paint finish
Specifications
GTIN: 00040892592931
UNSPSC: 26101112
Country of Origin: Mexico
| Type | 2-Pole Continuous-Duty Low Voltage Standard Type GP100 |
|---|---|
| Variable Torque Speed Range | 20:1 |
| Application Type | Compressor Motors, General Purpose AC Motors |
| Service Factor | 1.15 |
| Torque Rating | 22 lb-ft |
| Frequency Rating | 60 Hz |
| Rotation | Bi-Directional |
| Voltage Rating | 575 V AC |
| Shaft Size | 1-5/8 in Dia x 4 in L |
| Speed | 3600 rpm |
| Insulation Class | Class F |
| Enclosure Type | IP54/55, TEFC |
| Dimensions | 26.16 in W x 12.75 in H |
| Mounting Type | C-Face/Footed/Floor |
| Series | 1LE2 |
| Bearing Type | Ball |
| Phase | 3 |
| Special Features | Squirrel Cage Motors |
| Material | Cast Iron |
| Amperage Rating | 14 A |
| Temperature Rating | -20 to 40 deg C |
| Horsepower | 15 hp |
| Constant Torque Speed Range | 4:1 |
| Frame | 254TC |
| Sold as | EACH |
