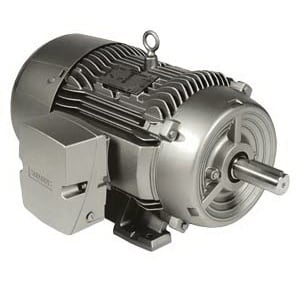

Siemens SIMOTICS 1LE22211AB314AA3 4-Pole NEMA Premium Efficiency Induction Motor, IP54/55 Enclosure, 1-1/2 hp, 230/460 V AC, 60 Hz, 3 Phase, 145T Frame, 1800 rpm Speed, Foot Mount


Description

Siemens SIMOTICS Induction Motor, 4-Pole NEMA Premium Efficiency, Series: GP100, General Purpose Motor Application, Low Voltage Motor and Squirrel Cage Rotor Special Features, 1-1/2 hp, 230/460 V AC, 2.1/4.2 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, IP54/55 Enclosure, 145T Frame, 2.25 mm H Shaft, Bi-Directional Rotation, 1.15 Service Factor, Double Shielded Ball Bearing, 4.5 ft-lb Torque, Foot Mounting, -25 to 40 deg C, Insulation Class: Class F, Die Cast Aluminum/Cast Iron, 4:1 Constant Torque Speed, 20:1 Variable Torque Speed, 14.44 mm L x 6.89 mm W x 7.28 mm H Dimensions

Features

  • 4.2 A at 230 VAC, 2.1 A at 460 VAC current rating
  • Without winding protection

Specifications

GTIN: 00662643336986

UNSPSC: 26101112

Country of Origin: Mexico

Variable Torque Speed Range
20:1
Application Type
General Purpose Motor
Service Factor
1.15
Frequency Rating
60 Hz
Rotation
Bi-Directional
Voltage Rating
230/460 V AC
Shaft Size
2.25 mm H
Speed
1800 rpm
Insulation Class
Class F
Enclosure Type
IP54/55
Dimensions
14.44 mm L x 6.89 mm W x 7.28 mm H
Mounting Type
Foot
Series
GP100
Bearing Type
Double Shielded Ball
Phase
3
Special Features
Low Voltage Motor and Squirrel Cage Rotor
Material
Die Cast Aluminum/Cast Iron
Amperage Rating
2.1/4.2 A
Temperature Rating
-25 to 40 deg C
Horsepower
1-1/2 hp
Constant Torque Speed Range
4:1
Frame
145T
Torque Rating
4.5 ft-lb
Type
4-Pole NEMA Premium Efficiency
Sold as
EACH
