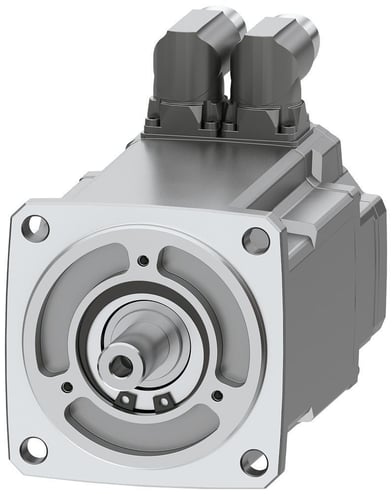

Siemens SIMOTICS S 1FK22045AF010SB0 1FK2 Compact Natural Cooling Servo Motor, 0.51/1.01 hp, 200 to 240/380 to 480 VAC
Siemens SIMOTICS S 1FK22045AF010SB0 1FK2 Compact Natural Cooling Servo Motor, 0.51/1.01 hp, 200 to 240/380 to 480 VAC
MPN 1FK22045AF010SB0
ASPN SIE1FK22045AF010SB0
UPC 195125037243
Description
Features
- With AS22DQC encoder, Drive-CLiQ plug
- With plain shaft, without brake
- The SIMOTICS S-1FK2 servomotors fully exploit their strengths in the system with the SINAMICS S210 converter
- Short adjustment and positioning times
- Quick and precise compensation of disturbances
- Stable closed loop control with high dynamic response
- This is achieved by rapid control cycle, high pulse frequency, complex rule algorithms, high resolution optical encoder with fast scanning, low moment of inertia of the motors, high overload capability
- Precise, stable control with medium to high masses to be moved with medium moment of inertia
Specifications
GTIN: 00195125037243
UNSPSC: 26101109
Country of Origin: Germany
| Type | Compact Natural Cooling |
|---|---|
| Torque Rating | 2.4 N-m |
| Voltage Rating | 200 to 240/380 to 480 V AC |
| Shaft Size | 19 mm Dia x 40 mm H |
| Speed | 3000 rpm |
| Insulation Class | Class B/F |
| Enclosure Type | IP65 |
| Dimensions | 80 mm W |
| Mounting Type | IM B5/IM V1/IM V3 |
| Series | 1FK2 |
| Special Features | Permanent Magnet Synchronous |
| Temperature Rating | 5 to 104 deg F |
| Horsepower | 0.51/1.01 hp |
| BABA Compliant | No |
| Amperage Rating | 2.25 A |
| Sold as | EACH |
