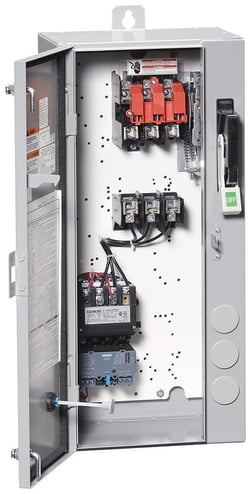

Siemens 17DUB92NH11 SZ 1 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 30 A, 600 V Fusible Disconnect Switch, 380 to 440 VAC, 440 to 480 VAC V Coil, 3 Poles, NEMA 12 Enclosure
Siemens 17DUB92NH11 SZ 1 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 30 A, 600 V Fusible Disconnect Switch, 380 to 440 VAC, 440 to 480 VAC V Coil, 3 Poles, NEMA 12 Enclosure
MPN 17DUB92NH11
ASPN SIE17DUB92NH11
UPC 662643803228
Description
Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC
- Box lug line side, screw terminal load side outgoing feeder connection
- 440 to 480 VAC at 60 Hz, 380 to 440 VAC at 50 Hz coil voltage
Specifications
GTIN: 00662643803228
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | SZ 1 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 575/600 V AC |
| Weight | 0.3 lbs |
| Enclosure Type | NEMA 12 |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Setting | 0.75 to 3.4 A |
| Motor Power | 1-1/2 hp, 2 hp |
| Coil Voltage | 380 to 440 V AC, 440 to 480 V AC |
| Connection Type | Box Lug/Screw Terminal |
| Reset Type | Automatic/Manual/Remote |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
