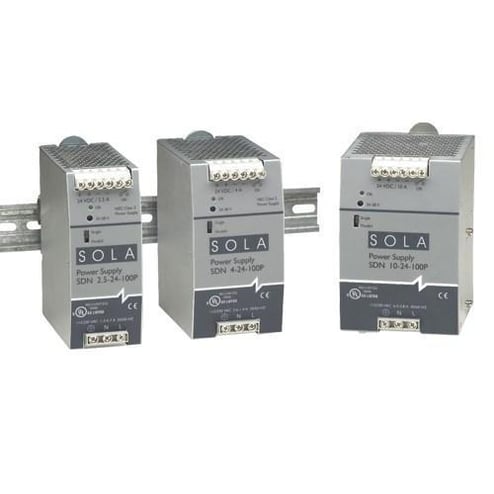

SolaHD SDN10-24-100P SDN-P Compact Power Supply, 115230 VAC Input, 24 VDC Output, 240 W Power Rating, 2.21 A, DIN Rail Mount


Description

The SolaHD SDN10-24-100P delivers reliable 24 VDC power conversion for industrial control applications with a compact DIN rail design. This switching power supply accepts 115-230 VAC input and provides 240 watts of output power at 2.21 amps continuous current. The unit's narrow profile conserves valuable panel space while supporting demanding automation and control circuits. Built-in protection features enhance system reliability in harsh industrial environments. DIN rail mounting allows quick installation in standard control enclosures without additional brackets or hardware.

The SDN DIN Rail power supplies provide industry leading performance. Sag Immunity, transient suppression and noise tolerant, the SDN series ensures compatibility in demanding applications. Power factor correction to meet European directives, hazardous location approvals and optional redundant accessories allow the SDN series to be used in a wide variety of applications. Wide operation temperature range, high tolerance to shock and vibration and reliable design make the SDN series the preferred choice of users.

Features

  • Power Factor Correction
  • Improved metal mounting clip
  • Adjustable voltage
  • Parallel capability standard on all units
  • Industrial grade design
  • Narrow width on rail for space critical applications
  • User friendly front pane
  • Highly efficient >90% switching technology
  • High MTBF and reliability

Specifications

GTIN: 00783472153213

UNSPSC: 39121004

Country of Origin: Taiwan (Province of China)

Type
Compact
Output Voltage
24 VDC
Frequency Rating
47 to 63 Hz
Input Voltage
115/230 VAC
Mounting Type
DIN Rail
Series
SDN-P
Amperage Rating
2.2/1 A
BABA Compliant
No
Case Material
Metal
Power Rating
240 W
Height
4.88 in
Depth
2.56 in
Width
4.55 in
Weight
28.4 lbs
