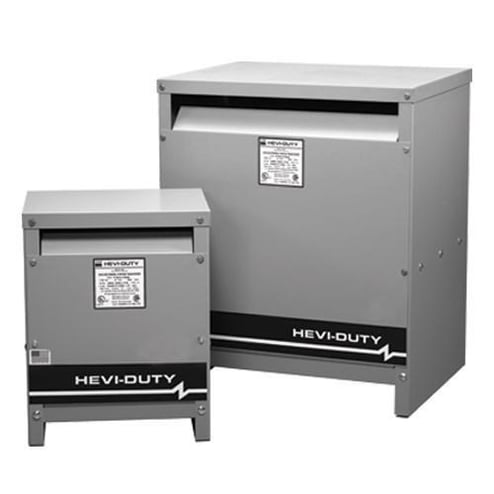

SolaHD E2H300SCU Dry General Purpose Ventilated Distribution Transformer, 480 Delta V Primary, 208Y/120 V Secondary, 300 kVA Power Rating, 60 Hz, 3 Phase
SolaHD E2H300SCU Dry General Purpose Ventilated Distribution Transformer, 480 Delta V Primary, 208Y/120 V Secondary, 300 kVA Power Rating, 60 Hz, 3 Phase
MPN E2H300SCU
ASPN SHDE2H300SCU
UPC 783472148332
Description
Features
- Quiet operation with sound levels 3 to 6 dB below the NEMA ST-20 requirements
- Terminal board connections and spacious wiring compartment
- Panel enclosure design reduces labor time, wiring diagram on inside front cover
- High efficiency for low cost operation
- Fast delivery
- Meets transit test requirements for ISTA test procedure 1E for packaged product
- 361 A primary, 834 A secondary amperage rating
Specifications
GTIN: 00783472148332
UNSPSC: 39121001
Country of Origin: United States of America (the)
| Efficiency | 99.02 % |
|---|---|
| Maximum Amperage Rating | 361/834 A |
| Frequency Rating | 60 Hz |
| Weight | 2 lbs |
| Enclosure Type | NEMA 1/3R |
| Number of Taps | 7 |
| Dimensions | 36 in L x 24 in W x 46 in H |
| Insulation | 220 deg C |
| Housing Material | Stainless Steel |
| Mounting Type | Floor |
| Secondary Voltage | 208Y/120 V |
| Connection Type | Terminal Board |
| Phase | 3 |
| Primary Voltage | 480 Delta V |
| Power Rating | 300 kVA |
| Temperature Rating | 150 deg C |
| BABA Compliant | No |
| Type | Dry General Purpose Ventilated |
| Sold as | EACH |
