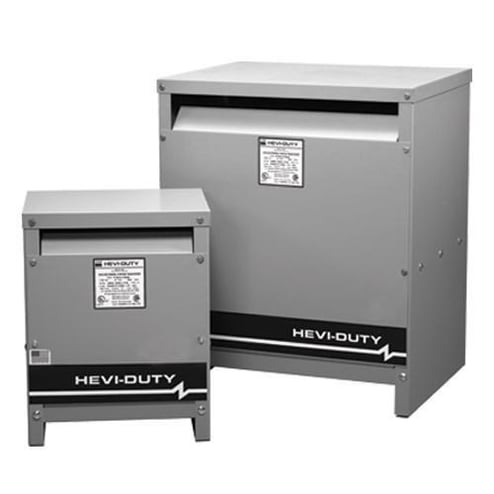

SolaHD E2H150SCU Dry General Purpose Ventilated Distribution Transformer, 480 Delta V Primary, 208Y120 V Secondary, 150 kVA Power Rating, 60 Hz, 3 Phase

The SolaHD E2H150SCU Dry General Purpose Ventilated Distribution Transformer, available from Agilix Solutions, features a 480 Delta V primary and a 208Y/120 V secondary configuration, with a power rating of 150 kVA and a frequency of 60 Hz. Designed for three-phase systems, this transformer ensures efficient electrical distribution with specifications including dimensions of 33 inches in length, 21 inches in width, and 44 inches in height, and a weight of 350 lbs. Installation is straightforward with terminal board connections and a floor mounting type. The transformer operates efficiently at 98.83% efficacy, producing sound levels 3 to 6 dB below NEMA ST-20 requirements for quieter operation. The unit includes a spacious wiring compartment and an enclosure type of NEMA 1/3R, made from durable stainless steel, supporting both indoor and outdoor installations. Rated for a temperature rise of 150° C, it uses high-grade 220° C insulation, suitable for varied operating conditions. This transformer is particularly beneficial for commercial or industrial settings where reliable power distribution is required, offering fast delivery and meeting ISTA test procedure 1E for packaged products. The product carries a primary amperage of 181 A and a secondary amperage of 417 A, with a housing designed to optimize ease of installation and reduce labor time. As an authorized distributor of SolaHD products, Agilix Solutions provides this model to ensure dependable power management solutions in various applications.
