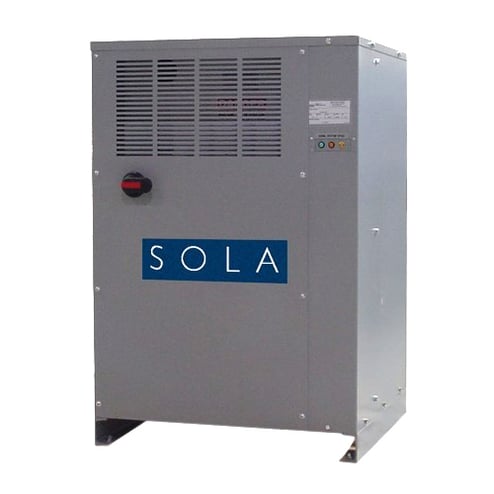

SolaHD SOLATRON Plus 63TCC320 Power Conditioner, 480 VAC Input, 480277 VAC Output, 3 Phase
SolaHD SOLATRON Plus 63TCC320 Power Conditioner, 480 VAC Input, 480277 VAC Output, 3 Phase
MPN 63TCC320
ASPN SHD63TCC320
UPC 783472030484
Description
Features
- Rugged, industrial construction
- High overload capability
- High MTBF, no fans used
- No power factor restriction on loads
- Tight regulation for protection against sag (-25%) and swell (+10%) conditions
- Fail safe, no break, auto bypass
- Status indicating lights
- Shielded, copper wound isolation transformer
- Surge protection to ANSI/IEEE and IEC standards
- High efficiency microprocessor controlled on load tap changer
- Automatic over and under voltage regulation, auto restart upon power loss and return
Specifications
Country of Origin: United States of America (the)
| Operating Temperature | 0 to 40 deg C |
|---|---|
| Frequency Rating | 60 Hz |
| Input Voltage | 480 VAC |
| Dimensions | 43 in H x 28 in W x 26 in D |
| Power Efficiency | 96 % |
| Phase | 3 |
| Power Rating | 20 kVA |
| BABA Compliant | No |
| Noise Attenuation | 150 dB |
| Output Voltage | 480/277 VAC |
| Sold as |
