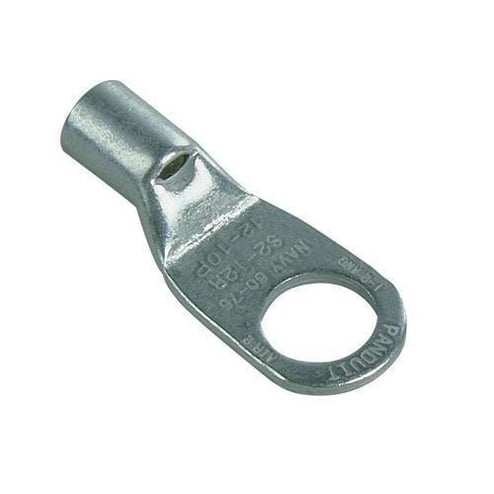

Panduit Pan-Lug S4/0-38R-5 Loose Piece Non-Insulated Tubular Ring Terminal, 4/0 AWG Conductor, 2.3 in L, Beveled/Seamless Barrel, Copper, Metallic
Panduit Pan-Lug S4/0-38R-5 Loose Piece Non-Insulated Tubular Ring Terminal, 4/0 AWG Conductor, 2.3 in L, Beveled/Seamless Barrel, Copper, Metallic
MPN S4/0-38R-5
ASPN PANDS4038R5
UPC 74983598977
Description
Features
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
GTIN: 00074983598977
UNSPSC: 39121405
| Type | Loose Piece Non-Insulated Tubular |
|---|---|
| Barrel Size | 0.57 in ID x 0.71 in OD x 0.91 in L |
| Color | Metallic |
| Tongue Type | Ring Straight |
| Conductor Type | Stranded |
| Barrel Type | Beveled/Seamless |
| Voltage Rating | 35 kVAC |
| Specifications | 15/16 in L Wire Strip, 15/16 in Mounting Hole |
| Stud Size | 3/8 in |
| Conductor Size | 4/0 AWG |
| Tongue Size | 1.06 in W x 0.14 in THK |
| Length | 2.3 in |
| Series | S-R Series |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 90 deg C |
| BABA Compliant | No |
| Sold as |
