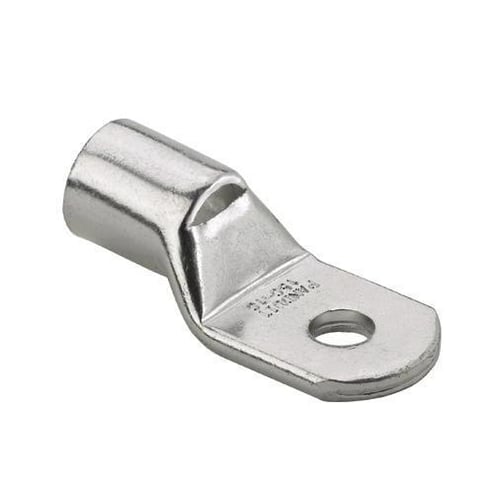

Panduit® Pan-Lug™ LCMA25-10-C LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 25 sq-mm Stranded Copper Conductor, Die Code: P29, 0.43 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCMA25-10-C LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 25 sq-mm Stranded Copper Conductor, Die Code: P29, 0.43 in Stud, Tin Plated Copper
MPN LCMA25-10-C
ASPN PANDLCMA2510C
UPC 74983769384
Description
Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installation
- 25 sq-mm class 2, 16 sq-mm class 5F and class 6F
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- For use with class 2 stranded copper conductors
Specifications
GTIN: 00074983769384
UNSPSC: 39121405
Country of Origin: India
| Type | 1-Hole Metric |
|---|---|
| Barrel Size | 6.9 mm ID x 8.8 mm OD x 15 mm L |
| Overall Length | 37 mm |
| Tongue Type | Round/Straight |
| Conductor Type | Stranded Copper |
| Barrel Type | Seamless/Standard |
| Voltage Rating | 35 kV |
| Weight | 4 lbs |
| Specifications | 10 mm Wrench Clearance, 16.5 mm L Wire Strip |
| Stud Size | 0.43 in |
| Conductor Size | 25 sq-mm |
| Tongue Size | 15.5 mm W x 1.5 mm THK |
| Series | LCMA |
| Die Code | P29 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Mounting Hole Size | 11 mm |
| BABA Compliant | No |
