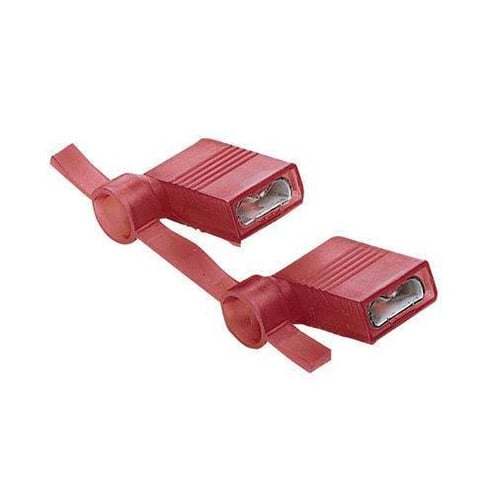

Panduit® Reel Smart™ DNFR18205FIB-KD Type DNFR-FIB Reel Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.187 to 0.205 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Insulated
Panduit® Reel Smart™ DNFR18205FIB-KD Type DNFR-FIB Reel Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.187 to 0.205 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Insulated
MPN DNFR18205FIB-KD
ASPN PANDDNFR18205FIBKD
UPC 74983789573
Description
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
GTIN: 00074983789573
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type DNFR-FIB Reel Vibration-Resistant |
|---|---|
| Terminal Type | Crimp |
| Color | Red |
| Conductor Type | Stranded |
| Barrel Type | Butted Seam/Funnel Entry |
| Voltage Rating | 600 V |
| Specifications | 0.178 in Dia Nylon Insulation, 11/32 in Mounting Hole Size, 9/32 in L Wire Strip |
| Conductor Size | 18 AWG |
| Dimensions | 0.57 in L x 0.37 in W x 0.6 in H |
| Tab Size | 0.187 to 0.205 in W x 0.032 in THK |
| Material | Brass |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| Insulated | Fully Insulated |
| BABA Compliant | No |
| Sold as |
