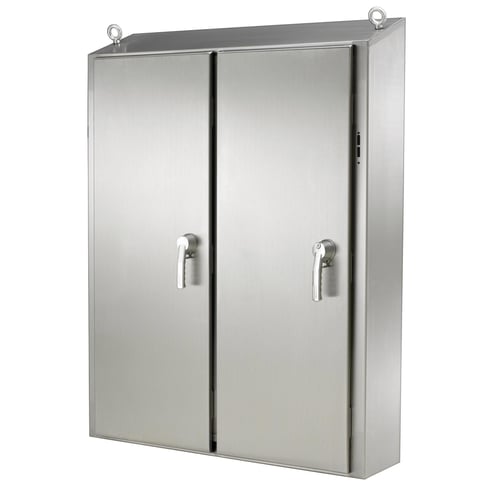

nVent HOFFMAN WATERSHED™ WS62XM5112SS WS2D Disconnect Enclosure, 62 in L x 51 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN WATERSHED™ WS62XM5112SS WS2D Disconnect Enclosure, 62 in L x 51 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
MPN WS62XM5112SS
ASPN HOFFWS62XM5112SS
UPC 783510131272
Description
Features
- Seams continuously welded and ground smooth
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits placement of objects on top of enclosure
- 97 deg door opening
- Door edges are sloped 20 deg at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Heavy-duty three-point latching mechanism operated by a Type 316 stainless steel PowerGlide padlocking handle on all doors
Specifications
GTIN: 00783510131272
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Lock | 3-Point Latch/Padlock Handle |
|---|---|
| Weight | 0.4 lbs |
| Width | 51 in |
| Depth | 12 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 62 in |
| Cover Type | Bullet Hinged/Lift-Off |
| Mounting Type | Freestanding |
| Series | WS2D |
| Material | 304 Stainless Steel |
| Volume | 91.6 CF |
| Finish | Brushed |
| BABA Compliant | Yes |
| Sold as | PIECE |
