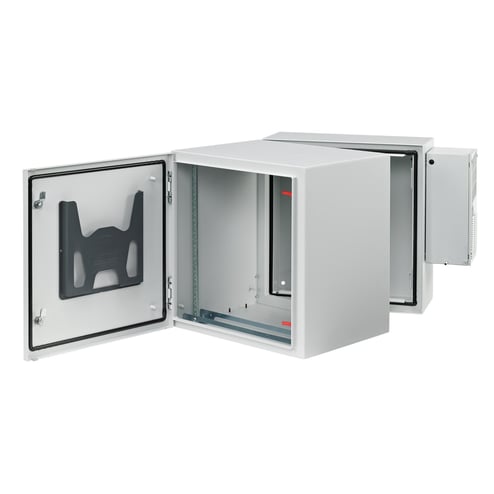

Hoffman PROTEK® PTHS242428G4A DWDH2 AC Double Hinged Solid Door Electrical Cabinet, 24.09 in L x 23.62 in W x 27.95 in D, NEMA 4/4X/12 NEMA Rating, Painted Steel
Hoffman PROTEK® PTHS242428G4A DWDH2 AC Double Hinged Solid Door Electrical Cabinet, 24.09 in L x 23.62 in W x 27.95 in D, NEMA 4/4X/12 NEMA Rating, Painted Steel
MPN PTHS242428G4A
ASPN HOFFPTHS242428G4A
UPC 783510236311
Description
Features
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- On 28 in (700 mm) wide enclosures, a 4 in vertical cable manager with composite fingers is provided on hinge side of cabinet
Specifications
GTIN: 00783510236311
UNSPSC: 43223306
Country of Origin: United States of America (the)
| Type | AC Double Hinged Solid Door |
|---|---|
| Lock | Keyed Wing Knob |
| Color | Light Gray |
| Width | 23.62 in |
| Depth | 27.95 in |
| NEMA Rating | NEMA 4/4X/12 |
| Length | 24.09 in |
| Door Size | 1.11 in THK |
| Mounting Type | Wall |
| Number of Doors | 2 |
| Series | DWDH2 |
| Material | Painted Steel |
| Rack Unit | 12RU |
| Volume | 0 |
| Finish | Polyester Powder Painted/Smooth Grain |
| Temperature Rating | -40 to 131 deg F |
| Electrical Ratings | 3.6 A, 115 V AC |
| Capacity | 250 lb |
| BABA Compliant | Yes |
| Sold as | PIECE |
