Description

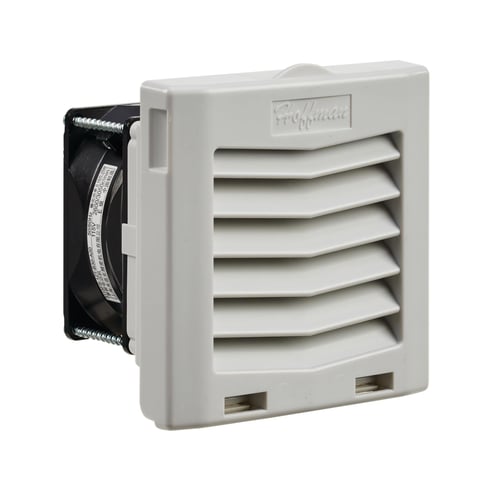

The nVent HOFFMAN HF0424414 MCLF Filter Fan provides reliable ventilation for electrical enclosures with 24 VDC operation and 21 cfm airflow capacity. This compact unit draws 0.14 amperes while consuming just 3.4 watts, making it ideal for continuous operation in control panels and equipment housings. The NEMA 12/IP54 rating protects against dust, water and corrosive agents in industrial environments. The integrated filter design helps maintain clean airflow while preventing contaminants from entering your enclosure, supporting optimal equipment performance and extending component life in demanding applications.
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.
Features
- Click-Fit design quickly installs into enclosure wall, no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 in (102 mm) to 13 in (325 mm)
Specifications
GTIN: 00783510341916
UNSPSC: 40101604
Country of Origin: China
| Grille Material | ABS |
|---|---|
| BABA Compliant | No |
| Series | MCLF |
| Enclosure Type | NEMA 12/IP54 |
| Speed | 2100 rpm |
| Dimensions | 4.42 in H x 4.44 in W x 3.15 in D |
| Air Flow Rate | 21 cfm |
| Amperage Rating | 0.14 A |
| Power Rating | 3.4 W |
| Volume | 0 |
| Mounting Type | Side |
| Weight | 6 lbs |
| Voltage Rating | 24 V DC |
| Sound Level | 34/36 dB |
| Sold as | PIECE |
