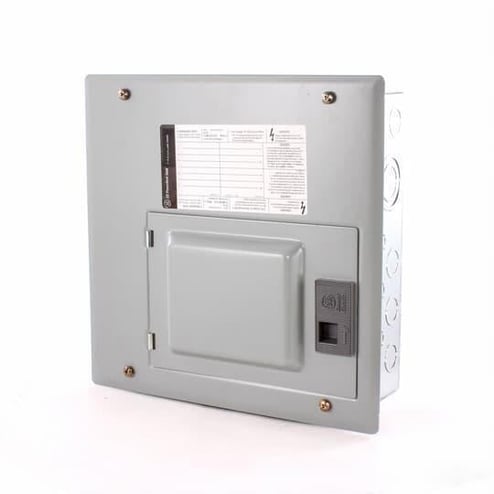

GE PowerMark Gold™ Industrial Solutions TLM812FCUD 1-Phase Standard Convertible Main Lug Loadcenter, 120/240 VAC, 125 A, 1 Pole, 22 kA Interrupt
GE PowerMark Gold™ Industrial Solutions TLM812FCUD 1-Phase Standard Convertible Main Lug Loadcenter, 120/240 VAC, 125 A, 1 Pole, 22 kA Interrupt
MPN TLM812FCUD
ASPN GETLM812FCUD
UPC 783164268041
Description
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
- 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Copper busbar for excellent conductivity
- Top and bottom feed
- 42, 4, 24, 16 - 1/2 in space
- Ground kit for top and bottom entry TGL2 (order separately)
- Optional door for 6 to 8 circuit panel
Specifications
GTIN: 00783164268041
UNSPSC: 39121101
| Type | 1-Phase Standard |
|---|---|
| Wire Size | 6 to 1 AWG |
| Interrupt Rating | 22 kA |
| Wiring Configuration | 3-Wire |
| Number of Poles | 1 |
| Enclosure Box Size | NEMA 3A |
| Voltage Rating | 120/240 VAC |
| Weight | 0.5 lbs |
| Number of Spaces | 8 |
| Width | 0.4 in |
| Breaker Type | THQL/THQP |
| Enclosure Type | NEMA 1 |
| Dimensions | 11-3/8 in H x 11-9/16 in W x 3-3/8 in D |
| Mounting Type | Flush |
| Series | TLM |
| Number of Circuits | 8 |
| Amperage Rating | 125 A |
| BABA Compliant | No |
| Sold as | EACH |
