Description

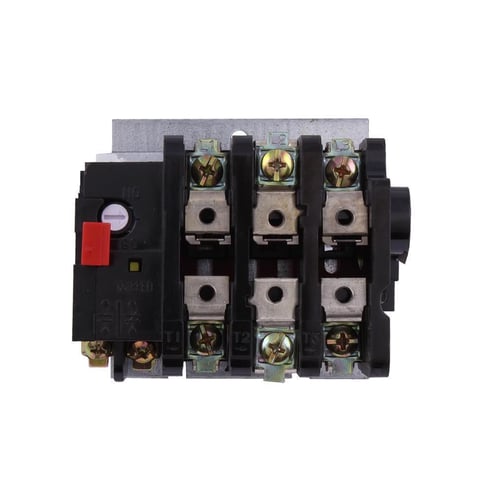

The GE CR324C660A Block Overload Relay protects motor circuits from overload conditions with reliable 27-amp current rating and dual-contact configuration. This relay features one normally closed and one normally open contact for versatile control applications in your electrical panels. The 600 VAC, 250 VDC coil voltage accommodates standard industrial power systems while delivering dependable overload protection. Its compact block design integrates easily into existing control circuits and supports both manual and automatic reset functions for enhanced operational flexibility.
Features
- Flexibility of operation, trip rating can be easily changed by replacing the front accessible heaters
- Dual bi-metal current monitoring, additional bi-metal strip anticipates the rate of temperature rise in the motor winding, effectively reduces trip time in locked rotor conditions
- It prevents dangerous temperature overshoot in the motor windings
- For used to provide overload protection for motors having full load currents up to 135 A
Specifications
GTIN: 00783166397626
UNSPSC: 39121521
| Number of Poles | 3 |
|---|---|
| Weight | 52 lbs |
| Enclosure Type | NEMA 1 |
| Coil Voltage | 600 VAC, 250 VDC |
| Mounting Type | Panel |
| Series | CR324 |
| Amperage Rating | 27 A |
| Contact Form | 1NO-1NC 1 Form A/1 Form B |
| BABA Compliant | No |
| Contact Rating | 135 A |
| Type | Block |
| Sold as | EACH |
