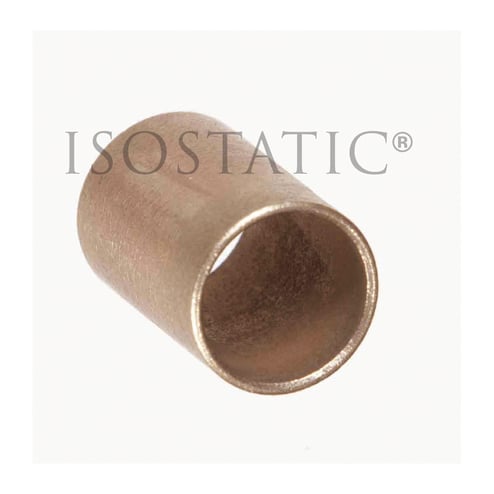

ISOSTATIC™ Oilube® 401144 Round Bore Sleeve Bearing, 12 in Dia Bore, 34 in OD, 1 in W
ISOSTATIC™ Oilube® 401144 Round Bore Sleeve Bearing, 12 in Dia Bore, 34 in OD, 1 in W
MPN 401144
ASPN FRGSS162416
UPC 846802044398
Description
Features
- Standard stock products
- SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Vacuum impregnated with SAE 30 oil during the manufacturing process
- Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
- Ideal for heavy loads at moderate speeds or light loads at high speeds
Specifications
GTIN: 00846802044398
UNSPSC: 31171509
Country of Origin: United States of America (the)
| Type | Round Bore |
|---|---|
| Bore Diameter | 1/2 in |
| Outside Diameter | 3/4 in |
| Maximum Pressure | 2000 psi |
| Weight | 0.1 lbs |
| Width | 1 in |
| Maximum Velocity | 1200 sfpm |
| Maximum PV Rating | 50000 psi/sq-ft/min |
| Bearing Material | SAE 841 Powdered Metal/Oil Impregnated Bronze |
| Temperature Rating | 10 to 175 deg F |
| BABA Compliant | No |
| Sold as | 1/PK |
