Description
The Mersen FB60J100B1 FB6 Fuse Block provides reliable circuit protection for industrial power systems with 100 amp capacity and 600 VDC rating. This Class J fuse block delivers secure fuse mounting and electrical connections in power conversion, renewable energy and industrial drive applications. The FB6 design supports consistent performance in demanding electrical environments where circuit protection integrity matters. Built to specification-grade standards, this fuse block enhances system reliability in your high-voltage DC installations and industrial power distribution panels.

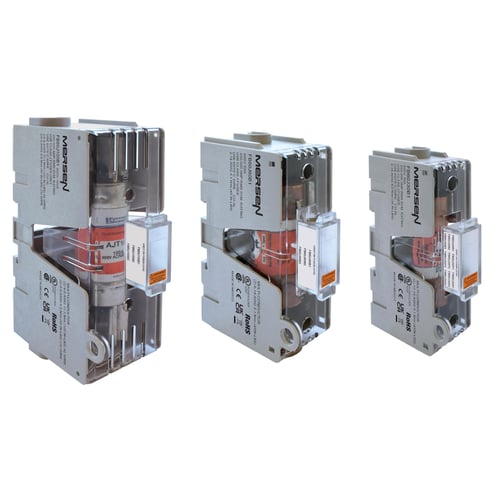

Mersen’s new Generation 2 open style class J fuse blocks accommodate class J fuses ranging from 0-100A, 600V. A choice of screw, pressure plate, and box connectors fit a wide range of stranded or solid wire. Gen2 fuse blocks are DIN-rail mountable, more compact than the traditional offering, and feature dovetail nesting for multipole field assembly. Fuse bases are IP20 rated when paired with Mersen’s newly designed dead front covers.
Features
- 30A is available with box, screw, and pressure plate terminations
- 60A and 100A is available with box only
- Fresh new Mersen gray color for fuse base
- Dovetail design for interlocking configuration of 2-pole and 3-pole bases
- Unique molding around the termination to accommodate hinged cover and for increased safety
- Built-in lockout/tagout feature
- IP20 finger safe
- New clear covers with indicators for safety and visual inspections
- Multi-connector wiring options
Specifications
UNSPSC: 39121629
Country of Origin: Mexico
| Class | J |
|---|---|
| Short Circuit Current Rating | 200 kA |
| Mounting Type | DIN Rail |
| Amperage Rating | 100 A |
| Frequency Rating | 50, 60 Hz |
| Terminal Type | Box |
| Voltage Rating | 600 V DC |
| Body Size | 2.88 in H x 1.90 in W x 5.35 in L |
| Series | FB6 |
| Material | Glass Filled Polycarbonate |
| Sold as | EACH |
