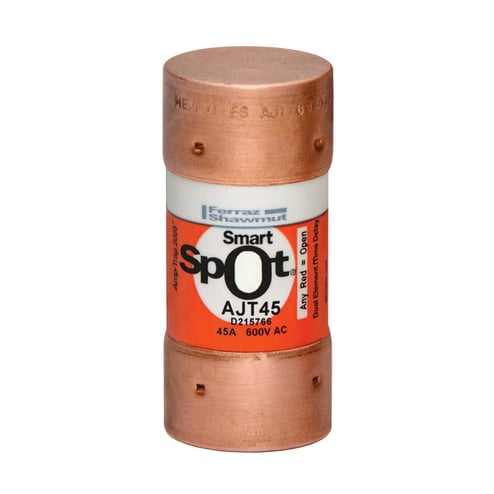

Ferraz Shawmut AMP-TRAP 2000 SmartSpot AJT45 Current Limiting Low Voltage North American Time Delay Power Fuse, 45 A, 600 VAC, 200 kA Interrupt, J Class, Cylindrical Body
Ferraz Shawmut AMP-TRAP 2000 SmartSpot AJT45 Current Limiting Low Voltage North American Time Delay Power Fuse, 45 A, 600 VAC, 200 kA Interrupt, J Class, Cylindrical Body
MPN AJT45
ASPN FERAJT45
UPC 782001962340
Description
Features
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
Specifications
GTIN: 00782001962340
UNSPSC: 39121606
Country of Origin: Mexico
| Terminal Type | Ferrule |
|---|---|
| Interrupt Rating | 200 kA |
| Body Type | Cylindrical |
| Element | Dual |
| Voltage Rating | 600 VAC |
| Weight | 8 lbs |
| Class | J |
| Mounting Type | Clip |
| Body Size | 1-1/16 in Dia x 2-3/8 in L |
| Series | AJT |
| Material | Fiberglass |
| Amperage Rating | 45 A |
| Volume | 0 |
| Rejection/Non-Rejection | Rejection |
| BABA Compliant | No |
| Type | Current Limiting Low Voltage North American Time Delay |
| Indicating/Non-Indicating | Indicating |
| Sold as | EACH |
