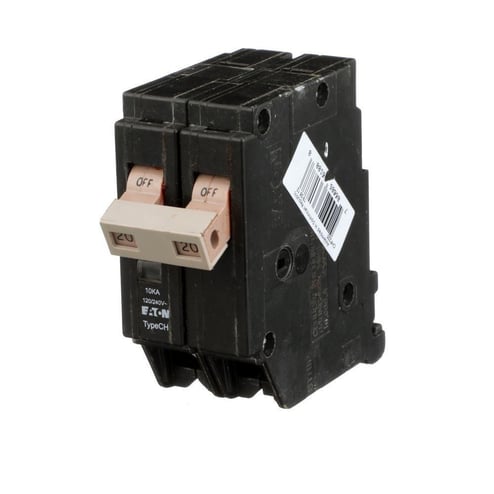

EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Common/Flag Trip


Description

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Features

  • (1) 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire range
  • Easy to install
  • Easy to reset
  • Best in class performance
  • Circuit breaker is clearly marked identifying amperage, ratings and the brand
  • Trip flag visibly indicates breaker status
  • 3/4 in per pole

Specifications

GTIN: 00786685361888

UNSPSC: 39121601

Country of Origin: Mexico

Number of Poles
2
Phase
1
Amperage Rating
20 A
Temperature Rating
60 to 75 deg C
BABA Compliant
No
Wire Size
(1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
Type
Type CHF Standard
Connection Type
Box Lug
Mounting Type
Plug-On
Dimensions
3 in L x 3/4 in W x 3 in H
Actuator Type
Toggle Handle
Voltage Rating
120/240 VAC
Interrupt Rating
10 kA
Sold as
EACH
