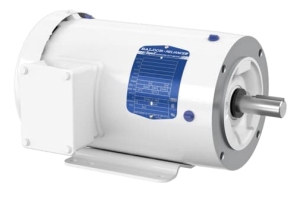

ABB EWDM3710T Washdown Motor 7.5 Hp 230 V


Description

White Washdown, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EWDM3710T)

Features

  • <div class="col span_1_of_2"><span class="label">Full Load Torque: <span class="value">0 LB-FT
  • <span class="label">No-Load Current: <span class="value">0 A
  • <span class="label">Line-Line Res. @ 25 C: 1.48 Ohms A Ph / 0 Ohms B Ph
  • <span class="label">Temp. Rise @ Rated Load: <span class="value">64 C
  • <span class="label">Temp. Rise @ S.F. Load: 84<span class="value"> C</div><div class="col span_1_of_2"><span class="label">Start Configuration: <span class="value">DOL
  • <span class="label">Break-Down Torque: 69.8<span class="value"> LB-FT
  • <span class="label">Pull-Up Torque: <span class="value"><span ><span ><span >31.5 LB-FT
  • <span class="label">Locked-Rotor Torque: <span class="value"><span ><span ><span >41 LB-FT
  • <span class="label">Starting Current: <span class="value"><span ><span ><span >70.7 A</div>

Specifications

Type
AC
Torque Rating
22.2 LB-FT
Frequency Rating
60.00 Hz hertz
Rotation
1800 RPM
Voltage Rating
460.0 V @ 60 HZ 230.0 V @ 60 HZ hertz
Shaft Size
1.375 in
Speed
1800 rpm
Enclosure Type
TEFC
Mounting Type
F1
Series
EWDM3710T
Bearing Type
Ball
Phase
3
Material
Steel
Horsepower
7.5
BABA Compliant
No
