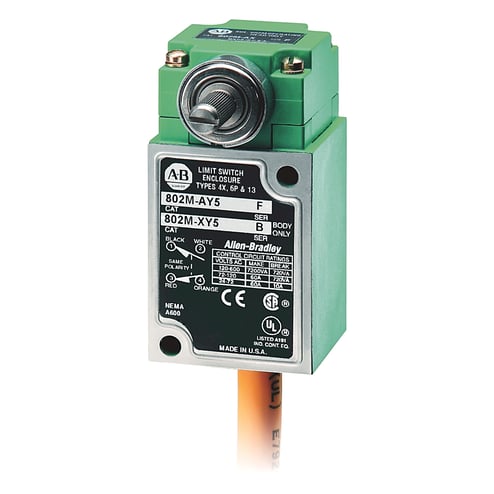

A-B 802M-XZJ9LF Factory Sealed Limi
A-B 802M-XZJ9LF Factory Sealed Limi
MPN 802M-XZJ9LF
ASPN AB802MXZJ9LF
UPC 662073878513
Description
Features
- Ambient temperature0...80° (32...176°), minimum temperature based on the absence of freezing moisture or water
- NEMA rating designation2 circuits same polarity: A600/AC-15
- Contact rating, make2 circuits same polarity: maximum 60 A per pole @ 120V AC, 50/60 Hz, AC-15 (A600)
- Contact rating, break2 circuits same polarity: maximum 6 A per pole @ 120V AC, 50/60 Hz, AC-15 (A600)
- Contact rating, make2 circuits same polarity: maximum 7200VA per pole @ 120V AC, 50/60 Hz, AC-15 (A600)
Specifications
GTIN: 00662073878513
UNSPSC: 39122213
| Invoice Description - English | Factory Sealed Limit Switch |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Number of Poles | 2 Circuits |
| Voltage Rating | 24V |
| Connection | Mini Quick Disconnect |
| Special Features | Body Only |
| Connector Type | 5 Pin Mini Type (J9 Wiring) |
| Standard | CCC, CSA, KC |
| BABA Compliant | No |
| Height (Imperial) | 2.4799 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 4.4902 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 3.1902 |
| Width UOM (Imperial) | IN |
| Indicator Lights | 24V DC LED to Normally Open |
