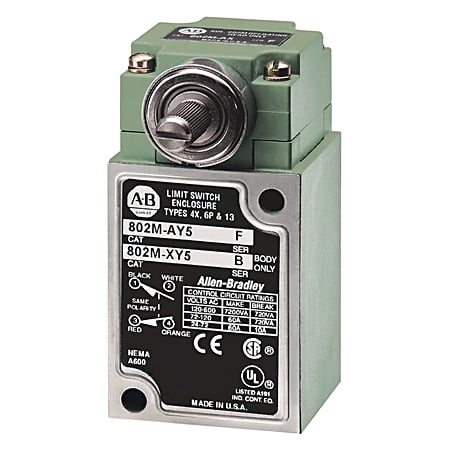

A-B 802M-XY5NF Factory Sealed Limit
A-B 802M-XY5NF Factory Sealed Limit
MPN 802M-XY5NF
ASPN AB802MXY5NF
UPC 662073467656
Description
Features
- Contact rating, make2 circuits same polarity: maximum 15 A per pole @ 480V AC, 50/60 Hz, AC-15 (A600)
- Contact rating, break2 circuits same polarity: maximum 1.5 A per pole @ 480V AC, 50/60 Hz, AC-15 (A600)
- Continuous carrying current2 circuits same polarity: maximum 10 A per pole @ 120V AC, 50/60 Hz, AC-15 (A600)
- Continuous carrying current2 circuits same polarity: maximum 10 A per pole @ 240V AC, 50/60 Hz, AC-15 (A600)
- Continuous carrying current2 circuits same polarity: maximum 10 A per pole @ 480V AC, 50/60 Hz, AC-15 (A600)
Specifications
GTIN: 00662073467656
UNSPSC: 39122213
| Invoice Description - English | Factory Sealed Limit Switch |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Cable Length | 5 Ft Standard |
| Number of Poles | 2 Circuits |
| Voltage Rating | Standard |
| Connection | Cable |
| Special Features | Body Only |
| BABA Compliant | No |
| Height (Imperial) | 2.3598 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 9.5299 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 9.3299 |
| Width UOM (Imperial) | IN |
| Indicator Lights | 120V AC 50/60 Hz Neon to NO |
