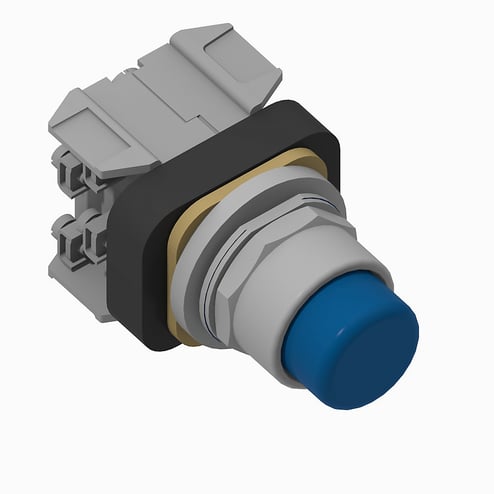

A-B 800T-QB24BAR 30mm Momentary Pus


Description

A-B 800T-QB24BAR 30mm Momentary Pus

800T PB,30mm Momentary Push Button,Full Voltage,24V AC/DC,Incandescent,Extended Head without Guard,Blue,No Guards on Terminals,1 NO 1 NC Logic Reed Contacts,No Block in Position 3,Device with Packaging

Features

  • Operator construction/materialMetal
  • Enclosure compatibility (NEMA type)1, 4, 12, 13
  • Shock25 G (contact fragility)/100 G (no damage)
  • Operating temperature-25 to 40
  • Storage temperature-40 to 85

Specifications

GTIN: 00662073117612

UNSPSC: 39122216

Invoice Description - English
30mm Momentary Push Button 800T PB
Safety Data Sheet (SDS) Flag
N
Voltage Rating
24V AC/DC
Special Features
Full Voltage
Actuator
Extended Head without Guard
Contact Configuration
Pos1: XAR (1-NO, 1-NC), Log Rd
Standard
Contact Rockwell Automation
Illumination-Type
Incandescent
BABA Compliant
No
Height (Imperial)
20.2000
Height UOM (Imperial)
IN
Length (Imperial)
1.0000
Length UOM (Imperial)
IN
Width (Imperial)
1.0000
Width UOM (Imperial)
IN
