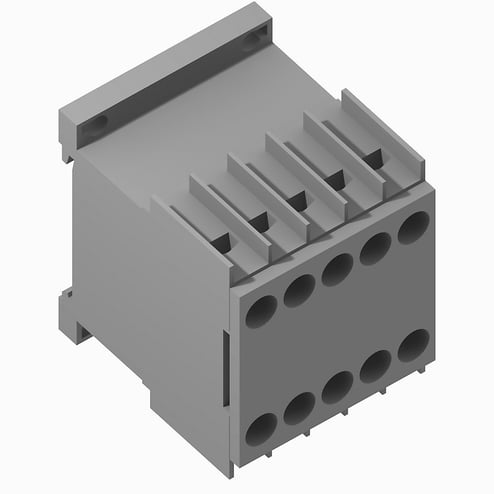

A-B 700-K31Z-VCM IEC Miniature Cont
A-B 700-K31Z-VCM IEC Miniature Cont
MPN 700-K31Z-VCM
ASPN AB700K31ZVCM
UPC 662074510405
Description
Features
- Rated thermal current (Ith)Ambient temperature 40°C: 10 A @ 24...240V, AC-12
- Rated thermal current (Ith)Ambient temperature 40°C: 10 A @ 230...500V, AC-12
- Rated thermal current (Ith)Ambient temperature 40°C: 10 A @ 230...690V, AC-12
- Rated thermal current (Ith)Ambient temperature 60°C: 6 A @ 24...240V, AC-12
- Rated thermal current (Ith)Ambient temperature 60°C: 6 A @ 230...500V, AC-12
Specifications
GTIN: 00662074510405
UNSPSC: 39122331
| Invoice Description - English | IEC Miniature Control Relay |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Special Features | Silver Bifurcated Contacts |
| Contact Configuration | 3 NO & 1 NC |
| Coil | 525V AC 50 Hz / 600V AC 60 Hz |
| BABA Compliant | No |
| Height (Imperial) | 2.2799 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 2.3598 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 1.8902 |
| Width UOM (Imperial) | IN |
