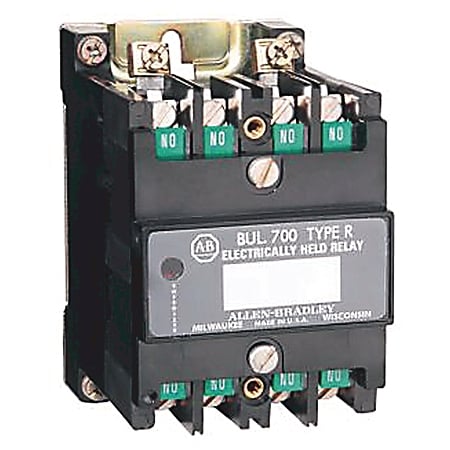

A-B 700DC-R200Z2 NEMA Sealed Sw DC
A-B 700DC-R200Z2 NEMA Sealed Sw DC
MPN 700DC-R200Z2
ASPN AB700DCR200Z2
UPC 662073223214
Description
Features
- Operating temperature-40 to 60
- Contact rating, make138VA @ 46...300V DC per NEMA P300
- Contact rating, make3 A @ 5...46V DC per NEMA P300
- Contact rating, break138VA @ 46...300V DC per NEMA P300
- Contact rating, break3 A @ 5...46V DC per NEMA P300
Specifications
GTIN: 00662073223214
UNSPSC: 39122331
| Safety Data Sheet (SDS) Flag | N |
|---|---|
| Contact Configuration | 2 Normally Open Contacts |
| BABA Compliant | No |
| Special Features | No Manual Actuator |
| Coil | 230-250V DC |
| Timing Range | Electrically Held Relay |
| Invoice Description - English | NEMA Sealed Sw DC Coil Indus Relay |
